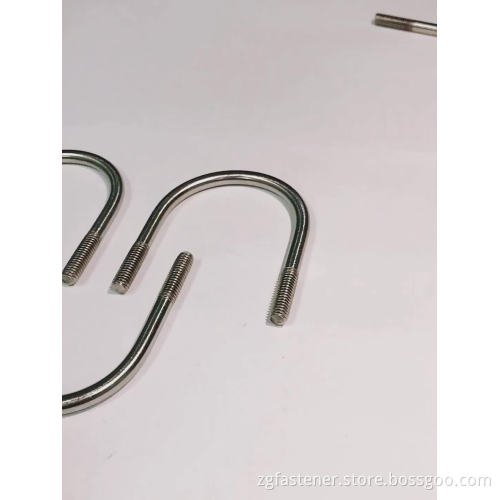

DIN3570 u shape carbon steel bolt stainless steel bolts customized u bolt pipe bend clamp

DIN3570 u shape carbon steel bolt stainless steel bolts customized u bolt pipe bend clamp

$0.01

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	KUNSHAN JIANGSU CHINA
Supply Ability:	50Ton/MONTH
Payment Type:	L/C,T/T,D/P,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Certificate:	ISO CE SGS
HS Code:	731815
Transportation:	Ocean,Land,Air
Port:	Shanghai,Ningbo

Product Description

Specifications		14	18	22	25	33	38	42	45	48	51	57	60
d		M6	M6	M10	M10	M10	M12	M12	M12	M12	M12	M12	M12
a		33	35	42	44	48	55	57	59	60	62	66	67
R		8	10	12	14	18	20	22	24	25	27	31	32
b		22	22	28	28	28	32	32	32	32	32	32	32
n		22	26	34	38	46	52	56	60	62	66	74	76
L0	Blank length	98	108	135	143	160	192	202	210	220	225	240	250
Thousand pieces kg		22	24	83	88	99	171	180	188	196	200	214	223

Specifications		76	83	89	102	108	114	133	140	159	165	219
d		M12	M12	M12	M16	M16	M16	M16	M16	M16	M16	M16
a		75	78	81	93	96	99	108	112	122	125	152
R		40	43	46	53	56	59	69	72	82	85	112
b		32	32	32	38	38	38	38	38	38	38	38
n		92	98	104	122	128	134	154	160	180	186	240
L0	Blank length	289	310	325	365	390	405	450	470	520	538	680
Thousand pieces kg		256	276	290	575	616	640	712	752	822	850	1075

Main Products

Certifications

Testing Laboratory

We have Magnetic Powder Detector, Material Testing Machine, Metallographic Microscope, such testing instruments, guarantee product high quality and beautiful appearance.The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing.

Production Process

First, we have our own High-precision Digital Machining center for mould making in special Mould Workshop, excellent mould make product beautiful appearance and its size accurately.

The second, we adopt blasting procession, removing Oxidation surface, make the surface to be bright and clean and uniform and beautiful.
