304 Stainless Steel Disc Springs Knurling washer DIN6796
- Payment Type:
- L/C, T/T, D/P, Paypal
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai, Ningbo
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | KUNSHAN JIANGSU CHINA |
|---|---|
| Supply Ability: | 50Ton/MONTH |
| Payment Type: | L/C,T/T,D/P,Paypal |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Certificate: | ISO CE SGS |
| HS Code: | 731815 |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai,Ningbo |

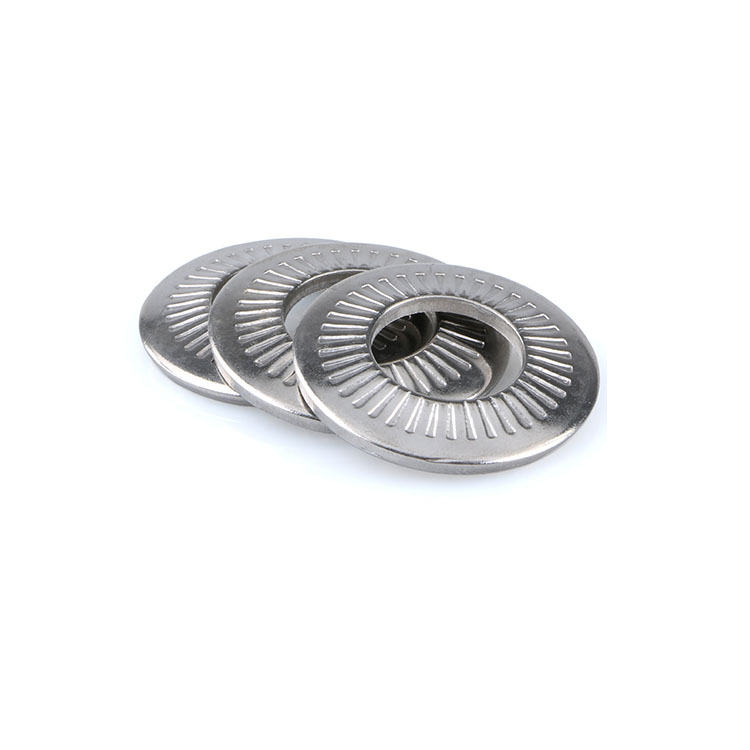

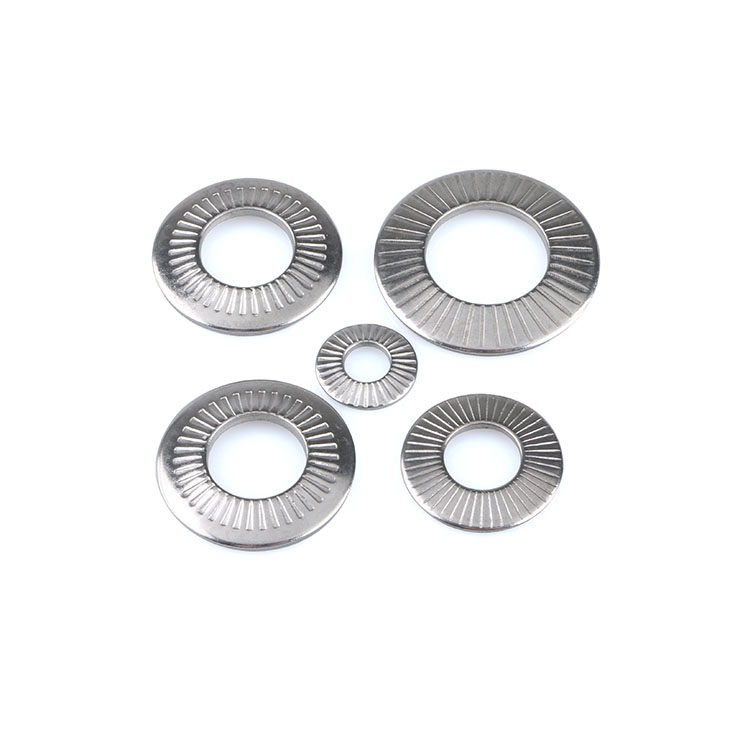

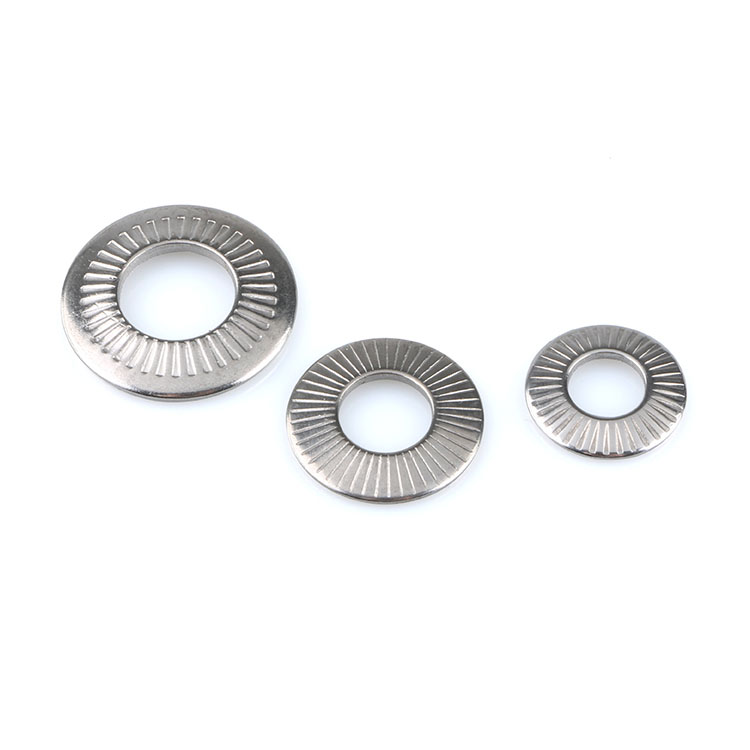

Stainless Steel Knurling Disc Spring, Serrated Safety Washers
| Size | d | dc | h | H | |
| max | min | ||||
| φ1.6 | 1.7 | 3.2 | 0.5 | 0.75 | 0.55 |
| φ2 | 2.2 | 4 | 0.5 | 0.75 | 0.55 |
| φ2.5 | 2.7 | 4.8 | 0.5 | 0.95 | 0.55 |
| φ3 | 3.2 | 5.5 | 0.5 | 0.95 | 0.55 |
| φ4 | 4.3 | 7 | 0.7 | 1.2 | 0.75 |
| φ5 | 5.3 | 9 | 0.7 | 1.2 | 0.75 |
| φ6 | 6.4 | 10 | 0.7 | 1.2 | 0.75 |
| φ8 | 8.4 | 13 | 1 | 1.6 | 1.2 |
| φ10 | 10.5 | 16 | 1 | 1.6 | 1.1 |
| φ12 | 13 | 18 | 1.3 | 1.85 | 1.3 |
| φ14 | 15 | 22 | 1.5 | 2.3 | 1.65 |
| φ16 | 17 | 24 | 1.5 | 2.3 | 1.75 |
| φ18 | 19 | 27 | 1.8 | 2.6 | 2.05 |
| φ20 | 21 | 30 | 1.8 | 2.8 | 2.15 |
| φ22 | 23 | 33 | 1.8 | 3 | 2.3 |
| φ24 | 25.6 | 36 | 2 | 3.1 | 2.35 |
| φ27 | 28.6 | 39 | 2.5 | 3.6 | 2.85 |
| φ30 | 31.6 | 45 | 2.5 | 4.1 | 3.1 |
| φ36 | 38 | 54 | 3 | 4.7 | 3.7 |
We have Magnetic Powder Detector, Material Testing Machine, Metallographic Microscope, such testing instruments, guarantee product high quality and beautiful appearance.The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing.
First, we have our own High-precision Digital Machining center for mould making in special Mould Workshop, excellent mould make product beautiful appearance and its size accurately.
The second, we adopt blasting procession, removing Oxidation surface, make the surface to be bright and clean and uniform and beautiful.
