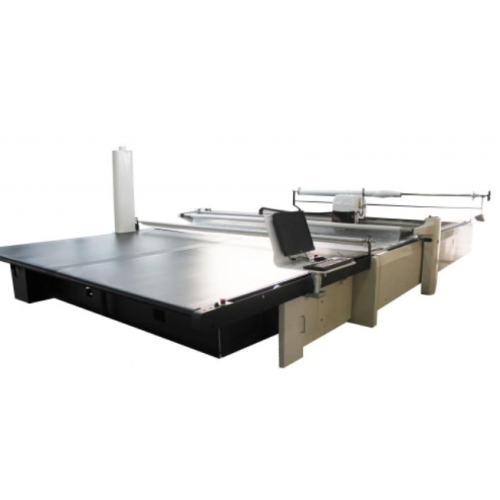

Unloading Automatic Cutting Machine For Factory

We are an experienced manufacturer of automatic cutting machine, Anti Jamming Automatic Cutting Machine produced by our company is suitable for textile and garment industry, leather industry, car seat, furniture industry, etc., is a very excellent automatic cutting equipment. Our products use double X axis and Y axis gear drive, brushless servo motor drive system, stable cutting head and tool design, make Extra Deluxe Automatic Cutting Machine work efficiency greatly improved, better effect, equipped with modular four sets of automatic sharpening system, make the work more effective. Our Magnetically Insulated Automatic Cutting Machine is equipped with mute, dust, sundry filter system, our automatic cutting machine adopts LCD panel configuration, manual crank, convenient operation, simple and easy to use.

Features:

1, Equip with dust collecting device, save maintenance time, improve the service life of equipment and consumables

2, from the chain drive to the synchronous belt drive, the transmission noise is less, longer life;

3, The head adopts L-shaped arrangement, the main drive shaft structure is optimized, making the equipment movement more stable;

4, New high efficiency and energy saving pump design, reduce equipment noise;Under the same performance condition, reduce power and save energy consumption.

Basic technical parameters

Technical parameters HY-S1624

Effective cut area (LXW)

Maximum cutting height (after vacuum adsorption) 5mm

Maximum mechanical speed is 60m/min

Power supply three-phase AC380V/50HZ/10KW

Air source (dry and clean compressed air) 0.55MPa 60L/MIN

The total weight of the equipment is 750KG

You can choose:

Length: lengthened model, suitable for longer layout, also shows that a single cut can produce more cut pieces.

Width: from 1700mm to 4000mm, you can choose the appropriate width according to the product characteristics of the enterprise.

Height: After vacuum adsorption, from 50mm to 70mm, or even 110mm, the height can be selected according to the fabric type of the enterprise.

Cold installation: the device is mainly used in the fabric with low melting point. When cutting, the fabric and the cutting knife are prone to friction and heat, which may lead to the bonding of the fabric and cold

However, the device can provide cold air below zero for the cutter and reduce the temperature of the cutter surface.

Knife intelligent device: suitable for cutting multi-layer and high-rise denim fabric, to ensure cutting accuracy and improve cutting output.Other devices: "M" mobile device, "T" hit

Hole device, adsorption through the window, automatic supplementary pressure, bar to lattice.
