Single Layer CTP plate map is multifarious with a variety of media types. However, after nearly ten years of development, three systems have been formed: thermal polymerization, silver salt and photopolymerization system. Single Layer Ctp Plate Maker has different characteristics and application range. Thermal technology has almost monopolized commercial printing with high resolution, high print resistance, and bright room operation. Since the appearance of silver edition, high speed plate making has played a dominant role in the newspaper industry, but recently it is affected by photosensitive edition and thermal newspaper, and its development prospects are bleak. The performance of photosensitive polymer plate is in between, which can be used in newspapers and commercial applications. In particular, the development of 405nm high power violet laser has attracted extensive attention of violet laser photosensitive polymer plate. Users can choose suitable Ctp technology according to their own business characteristics, not blindly introduced. Due to the blind launch of Single Layer Ctp Plate Makers For Sale, many domestic printing enterprises have caused idle equipment and waste of funds.
TECHNICAL DATA
|

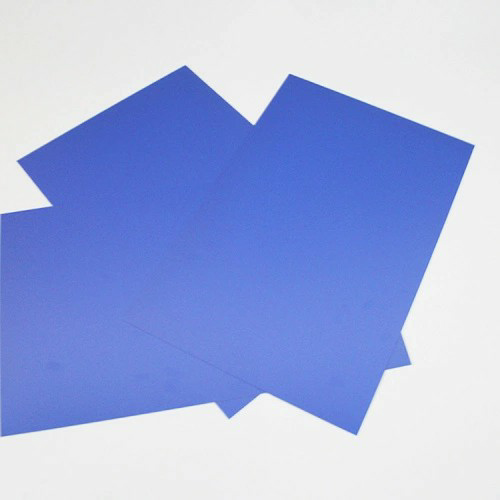

UV-PH HIGH SENSITIVITY POSITIVE CTcP PLATE |
|
|
Plate Type |
UV-PH type UV-CTP plate, also used as high sensitivity PS plate. |
|
Application |
Commercial sheetfed and rotary press printing |
|
Substrate |
Electrochemically grained and anodized aluminum |
|
Gauge |
0.15/0.20/0.25/0.30/0.40mm |
|
Maximum width |
1320mm |
|
Spectrum scope |
350-460nm UV light, especially 400-410nm UV laser |
|
Sensitivity |
40±5 mw(Cron UV-4632CI platesetter Parameter 1000 rpm) |
|
Safe light |
UV filtered or Yellow light |
|
Coating color |
Blue-Green |
|
Dot reproduction |
2-98% @ 250 lpi |
|
Applicable platesetter |
main UV-CTP platesetters such as Cron,luscher,Amsky,basysPrint. |
|
Run length |
Above 100,000,which may vary against the different press, ink and stock condition |
|
Developer |
Common positive offset plate developer |
|
Development |
Conductivity: min 55ms, max 65ms Temperature: 20-25°C PH 13.00-13.40 |
|
Packaging |
0.15mm 100 pieces/box 0.25/0.30mm 50 pieces/box if length <1030mm; 30 pieces/box if length ≥1030mm; 25 pieces/box if the area > 1m2 |
|
Shelf life |
18 months when stored in a light-free area away from excessive cold, heat and high humidity |
|
Transport and storage |
Store plates at in their packaging, away from excessive cold, heat or high humidity. Recommended condition is: temperature 10-26°C & RH between 40 - 70%. |
