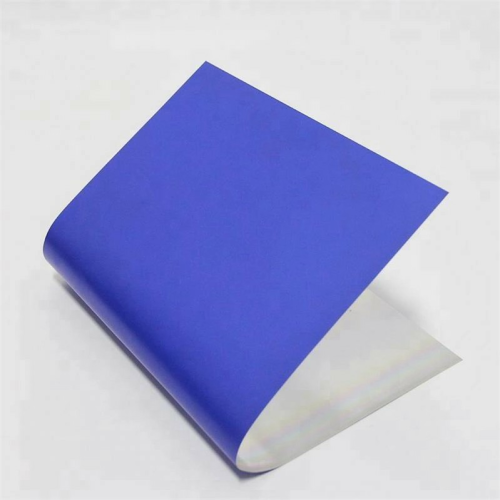

single layer ctp plate insert
- Transportation:
- Ocean, Land, Air
- Port:
- ShangHai Port, Ningbo Port
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | Strong |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF,EXW |
| Transportation: | Ocean,Land,Air |
| Port: | ShangHai Port,Ningbo Port |
The sensitivity of the single layer CTP plate insert must be adapted to the light source or thermal energy of the plate making machine.
For silver halide plate imaging, 5mW UV diode is sufficient; Photopolymer plates require at least 30mW of energy. While some manufacturers install 60mW diodes in their CTP systems, Krause-Biagosch even uses 100mW, which greatly reduces imaging time and improves plate making efficiency.
Single Layer Ctp Plate Joiner imaging requires higher energy, requiring 1000mW infrared diode. Single Layer Ctp Plate Junction requires uv energy to image on BasysPrint's CTcP system and ESKO-Graphics' Espresso system. There are also printed versions that use argon ion lasers (488 nm) and frequent-doubling Nd:YAG lasers (532 nm) for imaging, but these lasers have mostly been replaced by UV diodes and are therefore not meaningful for new investment.
TECHNICAL DATA
|
UV-PH HIGH SENSITIVITY POSITIVE CTcP PLATE |
|
|
Plate Type |
UV-PH type UV-CTP plate, also used as high sensitivity PS plate. |
|
Application |
Commercial sheetfed and rotary press printing |
|
Substrate |
Electrochemically grained and anodized aluminum |
|
Gauge |
0.15/0.20/0.25/0.30/0.40mm |
|
Maximum width |
1320mm |
|
Spectrum scope |
350-460nm UV light, especially 400-410nm UV laser |
|
Sensitivity |
40±5 mw(Cron UV-4632CI platesetter Parameter 1000 rpm) |
|
Safe light |
UV filtered or Yellow light |
|
Coating color |
Blue-Green |
|
Dot reproduction |
2-98% @ 250 lpi |
|
Applicable platesetter |
main UV-CTP platesetters such as Cron,luscher,Amsky,basysPrint. |
|
Run length |
Above 100,000,which may vary against the different press, ink and stock condition |
|
Developer |
Common positive offset plate developer |
|
Development |
Conductivity: min 55ms, max 65ms Temperature: 20-25°C PH 13.00-13.40 |
|
Packaging |
0.15mm 100 pieces/box 0.25/0.30mm 50 pieces/box if length <1030mm; 30 pieces/box if length ≥1030mm; 25 pieces/box if the area > 1m2 |
|
Shelf life |
18 months when stored in a light-free area away from excessive cold, heat and high humidity |
|
Transport and storage |
Store plates at in their packaging, away from excessive cold, heat or high humidity. Recommended condition is: temperature 10-26°C & RH between 40 - 70%. |
Manufacturer ctcp printing plates uv ctp plate ctcp printing offset plate Manufacturer ctcp printing plates uv ctp plate ctcp printing offset plate Manufacturer ctcp printing plates uv ctp plate ctcp printing offset plate Manufacturer ctcp printing plates uv ctp plate ctcp printing offset plate
PACKING WAY
