The CTP workflow means that digital data can be made directly into a printing plate without the need for film. Single Layer CTP plate Search benefits printers and their users. The Single Layer Ctp Plate Selector can produce sharper points than the traditional Plate. It speeds up the preparation time of printing on the machine, shorts the whole printing process from the front end to the back end, and improves the printing quality. At the same time, users can quickly get a return on investment. The first companies to embrace CTP are the leaders of the graphic art industry. Not only do these companies have deep pockets, but they also have the technical strength to make sure the work gets done smoothly and on time.
CTP can handle a variety of printing methods, including business forms, brochures, contacts, documents, finance, newspapers, labels and packaging. In addition, the Single Layer Ctp Plate Selection is also suitable for printing sheet materials and brochures. Since the CTP system is also suitable for newspapers and packaging printing, it is well known that these industries are mainly advertising films. But thanks to Adob E's PDF portable file format and Agfa Apogee workflows based on PDF workflows, the supply of film has been greatly reduced.
TECHNICAL DATA
|

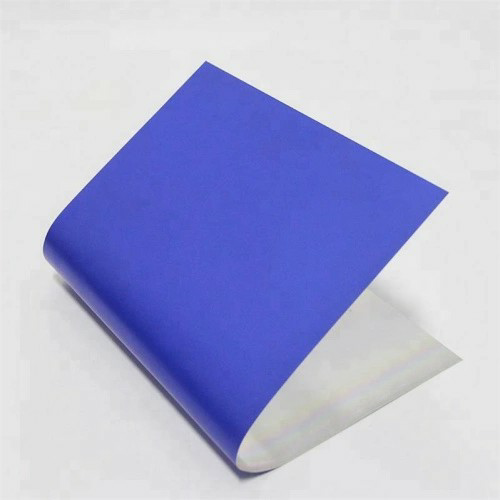

UV-PH HIGH SENSITIVITY POSITIVE CTcP PLATE |
|
|
Plate Type |
UV-PH type UV-CTP plate, also used as high sensitivity PS plate. |
|
Application |
Commercial sheetfed and rotary press printing |
|
Substrate |
Electrochemically grained and anodized aluminum |
|
Gauge |
0.15/0.20/0.25/0.30/0.40mm |
|
Maximum width |
1320mm |
|
Spectrum scope |
350-460nm UV light, especially 400-410nm UV laser |
|
Sensitivity |
40±5 mw(Cron UV-4632CI platesetter Parameter 1000 rpm) |
|
Safe light |
UV filtered or Yellow light |
|
Coating color |
Blue-Green |
|
Dot reproduction |
2-98% @ 250 lpi |
|
Applicable platesetter |
main UV-CTP platesetters such as Cron,luscher,Amsky,basysPrint. |
|
Run length |
Above 100,000,which may vary against the different press, ink and stock condition |
|
Developer |
Common positive offset plate developer |
|
Development |
Conductivity: min 55ms, max 65ms Temperature: 20-25°C PH 13.00-13.40 |
|
Packaging |
0.15mm 100 pieces/box 0.25/0.30mm 50 pieces/box if length <1030mm; 30 pieces/box if length ≥1030mm; 25 pieces/box if the area > 1m2 |
|
Shelf life |
18 months when stored in a light-free area away from excessive cold, heat and high humidity |
|
Transport and storage |
Store plates at in their packaging, away from excessive cold, heat or high humidity. Recommended condition is: temperature 10-26°C & RH between 40 - 70%. |
