Single layer CTP plate Template can accept special film, special PS plate and ordinary paper finished format output (plate + BO1118mm). Its performance characteristics are as follows:
(1) 6-liter drop control technology:
(2) Intelligent drop conversion technology:
(3) Micro-piezoelectric technology
(4) six color quick drying ink:
Chinese interface, Single Layer Ctp Plate Thickness for Windows95/98/NT, Mac platform, support for networking, PostScript
Levedll is fully compatible and compatible with Peking University Founder typesetting system. It can directly publish various software production layouts on Apple and PC, such as PageMaker, FreeHand, Quarkpress, Illustrator, CorelDraw, Word, founder Feiteng and Wins, etc.
Single Layer Ctp Plate Screws has a good and feasible data interface, simple operation, high-quality screening (up to 175 lines), powerful and comprehensive, fast reading and task queue, plate, preview and other functions. When large format output is available, film width and Plate width can also be calculated automatically to minimize the effort output, small Plate can be automatically converted to large format output, and Single Layer Ctp Plate Tectonics Plate can also be manually controlled.
Special CTP film and PS version are specially processed.
TECHNICAL DATA
|

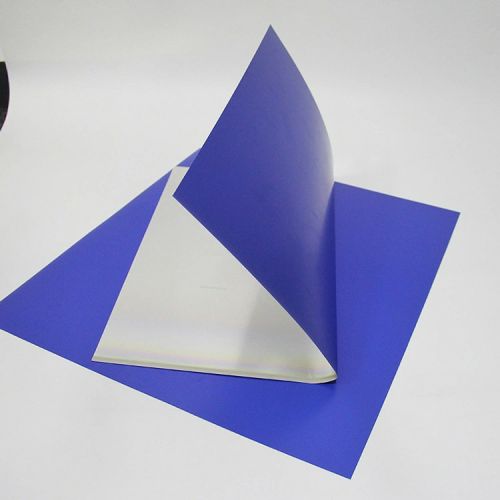

UV-PH HIGH SENSITIVITY POSITIVE CTcP PLATE |
|
|
Plate Type |
UV-PH type UV-CTP plate, also used as high sensitivity PS plate. |
|
Application |
Commercial sheetfed and rotary press printing |
|
Substrate |
Electrochemically grained and anodized aluminum |
|
Gauge |
0.15/0.20/0.25/0.30/0.40mm |
|
Maximum width |
1320mm |
|
Spectrum scope |
350-460nm UV light, especially 400-410nm UV laser |
|
Sensitivity |
40±5 mw(Cron UV-4632CI platesetter Parameter 1000 rpm) |
|
Safe light |
UV filtered or Yellow light |
|
Coating color |
Blue-Green |
|
Dot reproduction |
2-98% @ 250 lpi |
|
Applicable platesetter |
main UV-CTP platesetters such as Cron,luscher,Amsky,basysPrint. |
|
Run length |
Above 100,000,which may vary against the different press, ink and stock condition |
|
Developer |
Common positive offset plate developer |
|
Development |
Conductivity: min 55ms, max 65ms Temperature: 20-25°C PH 13.00-13.40 |
|
Packaging |
0.15mm 100 pieces/box 0.25/0.30mm 50 pieces/box if length <1030mm; 30 pieces/box if length ≥1030mm; 25 pieces/box if the area > 1m2 |
|
Shelf life |
18 months when stored in a light-free area away from excessive cold, heat and high humidity |
|
Transport and storage |
Store plates at in their packaging, away from excessive cold, heat or high humidity. Recommended condition is: temperature 10-26°C & RH between 40 - 70%. |
