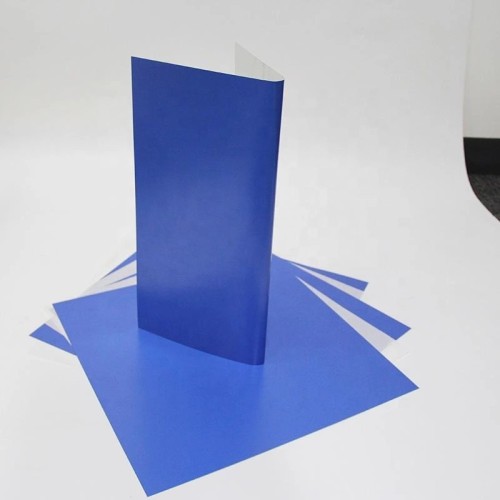

TP-K fuji agfa digital thermal plates aluminum ctp plates thermal for roofing
Digital Thermal Plates should be kept at a place dry and cool. The shelf life could be up to 12 months with a temperature between 15-30°C and RH 25-60%. They also should avoid the place where is too close to water tank, chemical reagent or direct sunlight. Plates should be used up as quickly as possible after unpack and they should be put in the original package and take measures to avoid light if they need short-term storage. Usually, under the yellow light, it can be left for 8 hours, and 2 hours under white or natural light.
Unpack under day light or yellow light, it is suggested that the plate making room avoid natural light. For manual or semi-automatic plate-making equipments, when loading and unloading plates, we should avoid scratch, which may in uence plate properties.
TECHNICAL DATA
|
TP-DOUBLE LAYER THERMAL CTP PLATE |
|
|
Item |
TP-double layer CTP plate |
|
Plate Type |
Positive working, no preheat thermal digital plate, with optional postbake for longer runs |
|
Application |
Medium for sheetfed, web offset press |
|
Substrate |
Electrochemically grained and anodized aluminum substrate |
|
Gauge |
0.15/0.20/0.25/0.30/0.40mm |
|
Maximum width |
1320mm |
|
Spectrum scope |
800-850nm |
|
Platesetter compatibility |
All the main brands in market, like Kodak Trendsetter/ Lotem/Magnus, Screen PT-R, Heidelberg Topsetter/ Suprasetter etc. |
|
Sensitivity |
110-130mj/cm2 |
|
Safe light |
Unpack it under day light or yellow light and the plate making operation should avoid high light. |
|
Coating color |
Dark blue |
|
Dot reproduction |
1% to 99% 200lpi. Depend upon capability of imaging device |
|
Run length |
100,000 impressions unbaked, over 500,000 impressions baked. Actual run length may vary according to press/ paper/ink conditions |
|
FM capability |
20 micron stochastic. |
|
Developer |
Huaguang TPD-80,Kodak Goldstar Premium, IMAF Therm 830/One Plus, etc. |
|
Development |
Huaguang TPD-80, 23°C/25 seconds, Kodak Goldstar Premium/IMAF Therm 830 23°C/30 seconds |
|
Packaging |
0.15mm 100 pieces/box 0.25/0.30mm 50 pieces/box if length <1030mm; 30 pieces/box if length ≥1030mm; 25 pieces/box if the area > 1m2 |
|
Shelf life |
18 months, under recommended storage conditions |
