Huaguang T-A Aluminum Negative Thermal CTP Plate
- Payment Type:
- L/C, T/T, D/P
- Incoterm:
- FOB, CFR, CIF, EXW
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- ShangHai Port, Ningbo Port
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | Strong |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF,EXW |
| Transportation: | Ocean,Land,Air |
| Port: | ShangHai Port,Ningbo Port |

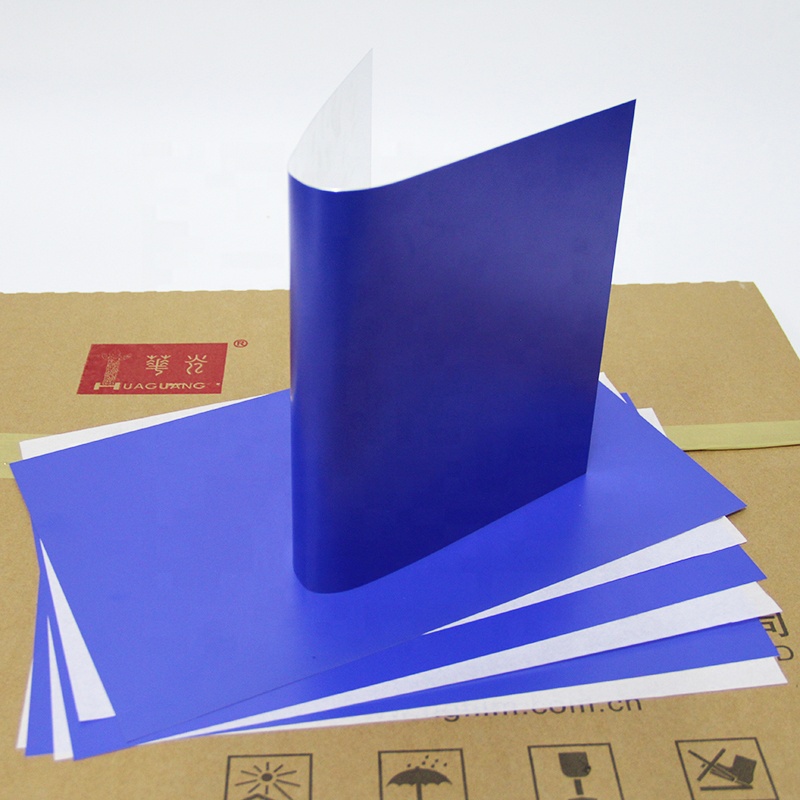

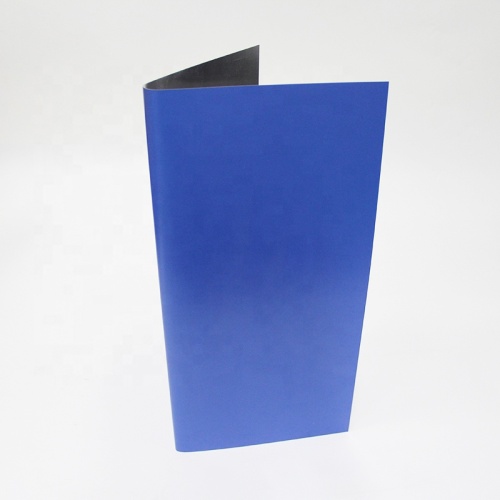

High Quality Aluminum negative huaguang thermal ctp plate for Film Setting Machinery
Transport and storage: Plates should be kept at a place dry and cool. The shelf life could be up to 12 months with a temperature between 15-30°C and RH 25-60%. They also should avoid the place where is too close to water tank, chemical reagent or direct sunlight. Plates should be used up as quickly as possible after unpack and they should be put in the original package and take measures to avoid light if they need short-term storage. Usually, under the yellow light, it can be left for 8 hours, and 2 hours under white or natural light.
Operation: Unpack under day light or yellow light, it is suggested that the plate making room avoid natural light. For manual or semi-automatic plate-making equipments, when loading and unloading plates, we should avoid scratch, which may in uence plate properties.
|

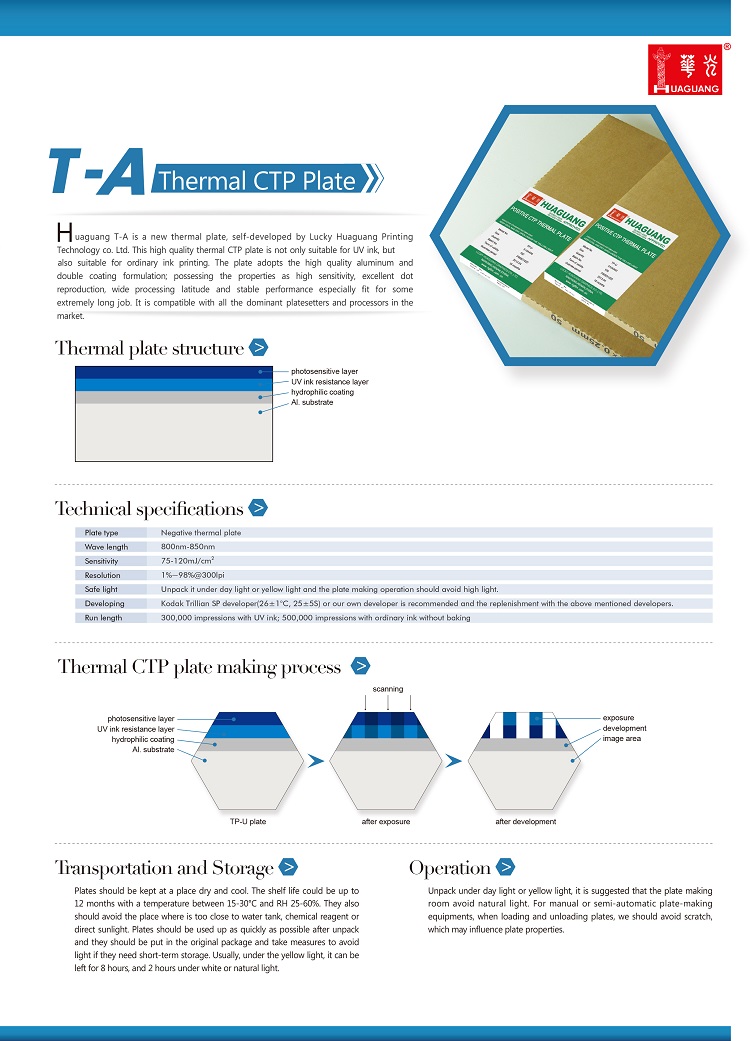

T-A NEGATIVE THERMAL CTP PLATE |
|
|
Plate Type |
Negative thermal plate |
|
Application |
UV ink printing or some extremely long impression job |
|
Substrate |
Electrochemically grained and anodized aluminum substrate |
|
Gauge |
0.15/0.20/0.25/0.30/0.40mm |
|
Maximum width |
1320mm |
|
Spectrum scope |
800-850nm |
|
Platesetter compatibility |
All the main brands in market, like Kodak Trendsetter/ Lotem/Magnus, Screen PT-R, Heidelberg Topsetter/ Suprasetter etc. |
|
Sensitivity |
75-120mj/cm2 |
|
Safe light |
Unpack it under day light or yellow light and the plate making operation should avoid high light. |
|
Coating color |
Dark blue |
|
Dot reproduction |
1% to 98% 00lpi. Depend upon capability of imaging device |
|
Run length |
300,000 impressions with UV ink; 500,000 impressions with ordinary ink; |
|
FM capability |
20 micron stochastic. |
|
Developing |
Kodak Trillian SP developer (26+/-1°C,25+/-5S) or our own developer is recommended and the replenishment with the above mentioned developers. |
|
Packaging |
0.15mm 100 pieces/box 0.25/0.30mm 50 pieces/box if length <1030mm; 30 pieces/box if length ≥1030mm; 25 pieces/box if the area > 1m2 |
|
Shelf life |
18 months, under recommended storage conditions |
