Processless CTP Printing Plate
- Transportation:
- Ocean, Land, Air
- Port:
- ShangHai Port, Ningbo Port
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Supply Ability: | Strong |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF,EXW |
| Transportation: | Ocean,Land,Air |
| Port: | ShangHai Port,Ningbo Port |
Product Description
Product Description
Huaguangbaoli

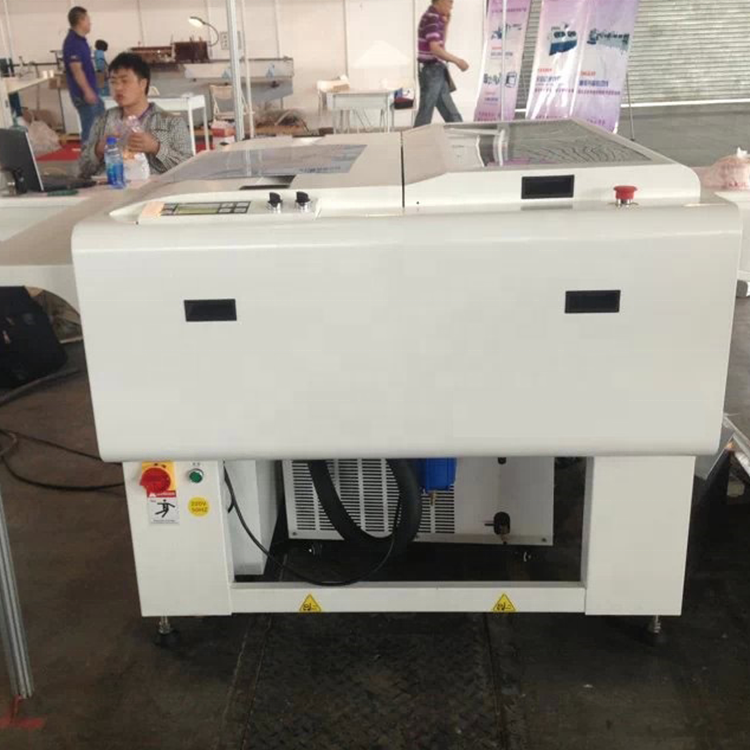

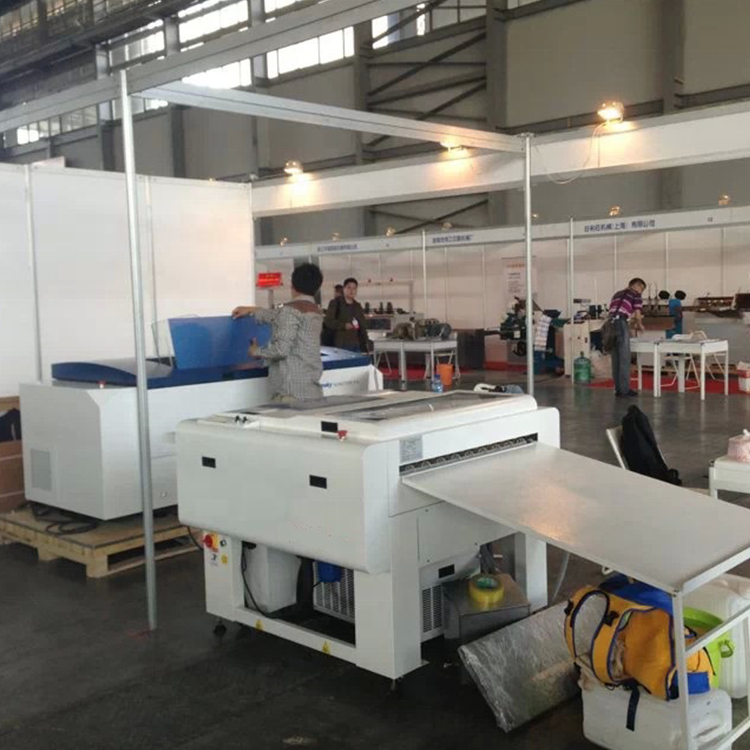

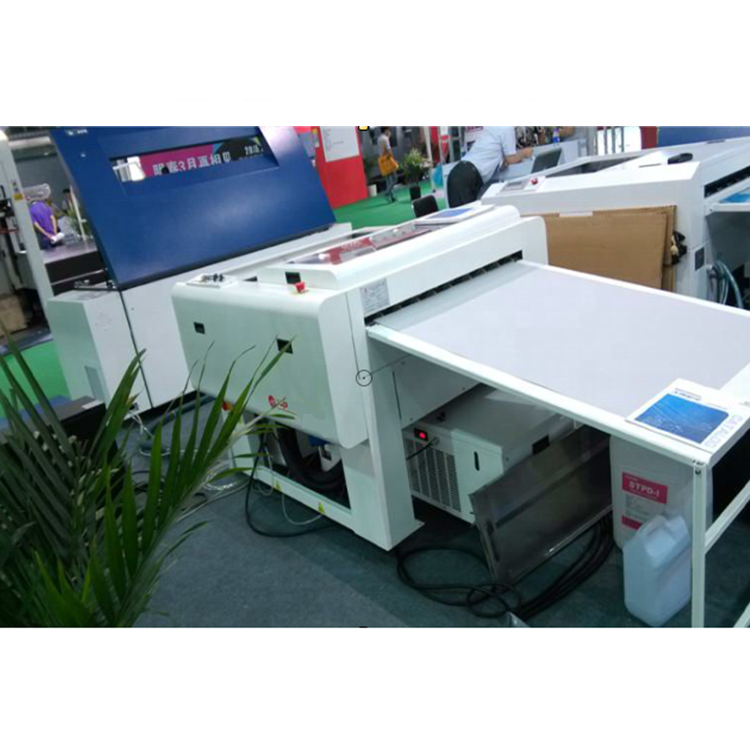

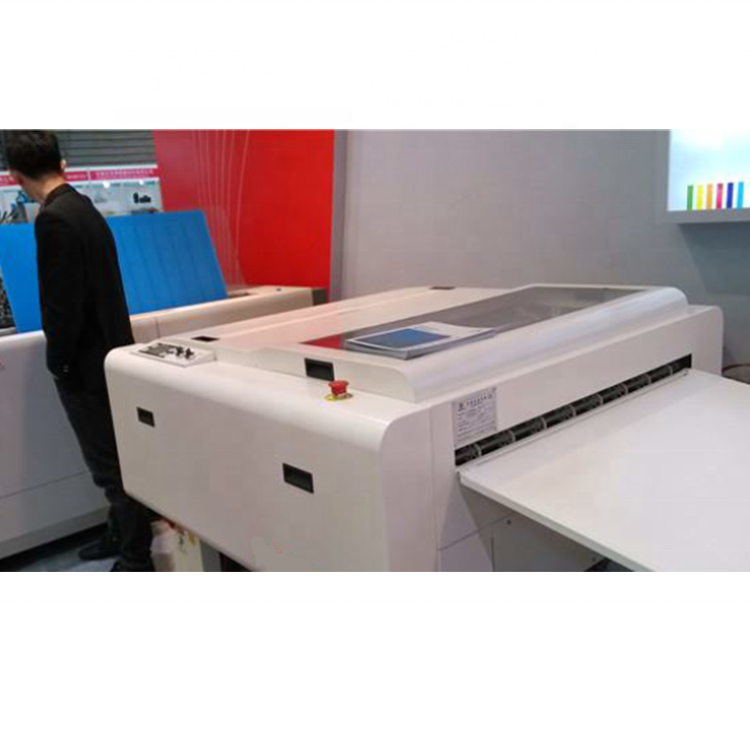

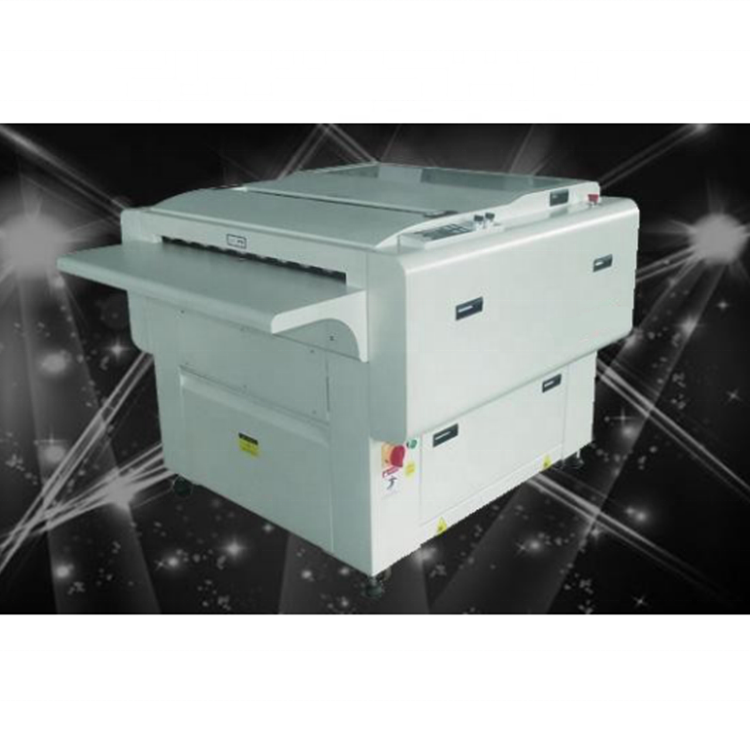

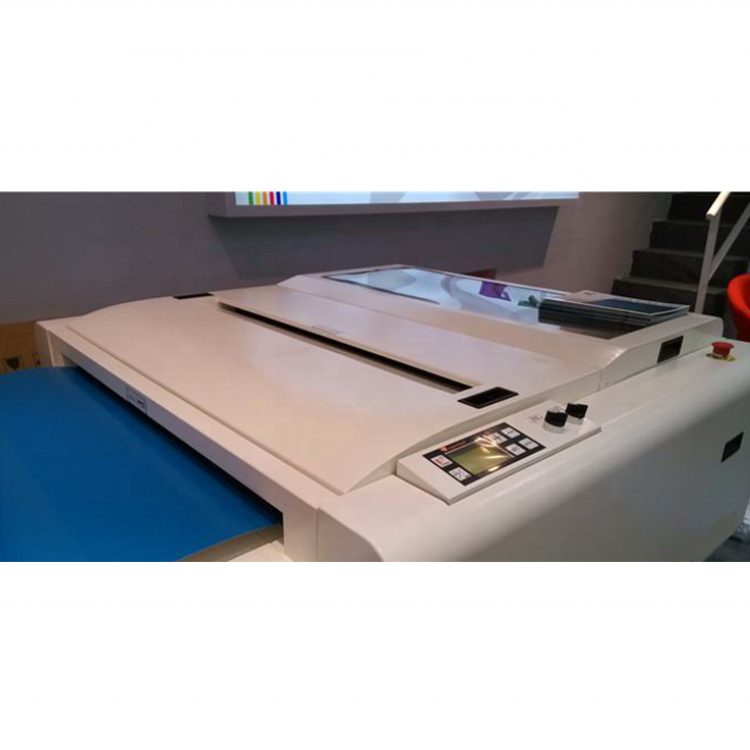

Automatic Photopolymer Flexo CTP Plate Making Machine
High Quality Automatic Photopolymer Flexo CTP Plate Making Ma
Features
1. Chemical-free Ctp Plate PVC tank and duralumin body resistant to corrosion.
2. Offset Positive Ctp Plate Extra-long developing with stable uniformity, especially adaptive to high-speed
photosensitization thermal/UV CTP plates.
3. Overdeveloping gum roller assures no damage to the surface and two sets of wash brushes assures
sufficient development.
4. New Technology Ctp Plate Independent develop cooling system keeps the develop temperature fluctuation within 0.5 dgree
Celcius.
5. Accurate automatic anti-oxidation detecting and replenishing system of Superluck CTP plate
processor controls developing concentration.
6. Automatic cleaning and recycling.
7. Single Layer Ctp Plate Precise PLC control, processing without any letup.
8. Energy saving and environment friendly.
2. Offset Positive Ctp Plate Extra-long developing with stable uniformity, especially adaptive to high-speed
photosensitization thermal/UV CTP plates.
3. Overdeveloping gum roller assures no damage to the surface and two sets of wash brushes assures
sufficient development.
4. New Technology Ctp Plate Independent develop cooling system keeps the develop temperature fluctuation within 0.5 dgree
Celcius.
5. Accurate automatic anti-oxidation detecting and replenishing system of Superluck CTP plate
processor controls developing concentration.
6. Automatic cleaning and recycling.
7. Single Layer Ctp Plate Precise PLC control, processing without any letup.
8. Energy saving and environment friendly.
TECHNICAL DATA
|
Model
|
SL—88TH
|
SL—120TH
|
SL—140TH
|
| Material |
Thermal/UV CTP plate, CTcP plate
|
||
|
Capacity(cm/min)
|
20-150 | ||
|
Plate width (mm)
|
880mm | 1200mm | 1400mm |
|
Min. Plate length(mm)
|
300
|
||
|
Plate thickness(mm)
|
0.15-0.4 | ||
|
Tank content, developer(L)
|
38 | 56 | 68 |
|
Tank content, wash(L)
|
13.5 | 18 | 20 |
|
Adjustable temperature, dev(°C)
|
0—40(104°F)0 to 40°C adjustable (32—104°F) | ||
| Adjustable temperature, dry(°C) | |||
| Water consumption, max(L/min) | 8 | 10.5 | 12 |
|
Diameter of wash brush (mm)
|
50 | ||
|
Rotary speed of wash brush
|
80 | ||
|
Filter(um)
|
75 | ||
| Water supply |
Tap water (min. pressure 1 bar)
|
||
|
Gumming
|
Roller pressing gumming
|
||
|
Diameter of roller
|
60mm | ||
|
Dev. replenishment
|
0-1 | ||
| Dev. heating-up rate | 0.5 | ||
| Horizontal adjustment |
Adjustable
|
||
|
Power supply
|
220V 1φ 50—60Hz 30A
|
||
|
Power consumption (kw/h)
|
3.5 | 4 | 4.5 |
|
Voltage fluctuation
|
±10%
|
||
|
Gross weight(kg)
|
500 | 650 | 780 |
|
Net weight(kg)
|
420 | 580 | 650 |
| Mechanic size(mm) |
1260*1520*1040
|
1525*1520*1040
|
1850*1555*1040
|
| Packing size(mm) |
1360*1620*1250
|
1625*1620*1250
|
1950*1655*1250
|
| Optional configuration :plate stack .water filtration system | |||
