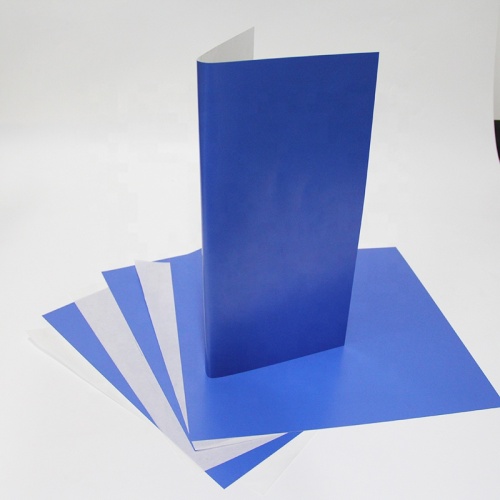

Aluminum Offset Plate UV CTCP Printing Plate

UV-PH HIGH SENSITIVITY POSITIVE CTcP PLATE

Plate Type

UV-PH type UV-CTP plate, also used as high sensitivity PS plate.

Application

Commercial sheetfed and rotary press printing

Substrate

Electrochemically grained and anodized aluminum

Gauge

0.15/0.20/0.25/0.30/0.40mm

Maximum width

1320mm

Spectrum scope

350-460nm UV light, especially 400-410nm UV laser

Sensitivity

40±5 mw(Cron UV-4632CI platesetter Parameter 1000 rpm)

Safe light

UV filtered or Yellow light

Coating color

Blue-Green

Dot reproduction

2-98% @ 250 lpi

Applicable platesetter

main UV-CTP platesetters such as Cron,luscher,Amsky,basysPrint.

Run length

Above 100,000,which may vary against the different press, ink and stock condition

Developer

Common positive offset plate developer

Development

Conductivity: min 55ms, max 65ms Temperature: 20-25°C PH 13.00-13.40

Packaging

0.15mm 100 pieces/box

0.25/0.30mm 50 pieces/box if length <1030mm;

                          30 pieces/box if length ≥1030mm;

                          25 pieces/box if the area > 1m2

Shelf life

18 months when stored in a light-free area away from excessive cold, heat and high humidity

Transport and storage

Store plates at in their packaging, away from excessive cold, heat or high humidity. Recommended condition is: temperature 10-26°C & RH between 40 - 70%.
