Product Description

Manufacturer supply single layer huaguang offset positive uv ink ctcp plate

TECHNICAL DATA

UV-PH HIGH SENSITIVITY POSITIVE CTcP PLATE
Plate Type	UV-PH type UV-CTP plate, also used as high sensitivity PS plate.
Application	Commercial sheetfed and rotary press printing
Substrate	Electrochemically grained and anodized aluminum
Gauge	0.15/0.20/0.25/0.30/0.40mm
Maximum width	1320mm
Spectrum scope	350-460nm UV light, especially 400-410nm UV laser
Sensitivity	40±5 mw(Cron UV-4632CI platesetter Parameter 1000 rpm)
Safe light	UV filtered or Yellow light
Coating color	Blue-Green
Dot reproduction	2-98% @ 250 lpi
Applicable platesetter	main UV-CTP platesetters such as Cron,luscher,Amsky,basysPrint.
Run length	Above 100,000,which may vary against the different press, ink and stock condition
Developer	Common positive offset plate developer
Development	Conductivity: min 55ms, max 65ms Temperature: 20-25°C PH 13.00-13.40
Packaging	0.15mm 100 pieces/box 0.25/0.30mm 50 pieces/box if length <1030mm; 30 pieces/box if length ≥1030mm; 25 pieces/box if the area > 1m2
Shelf life	18 months when stored in a light-free area away from excessive cold, heat and high humidity

Transport and storage

Store plates at in their packaging, away from excessive cold, heat or high humidity. Recommended condition is: temperature 10-26°C & RH between 40 - 70%.

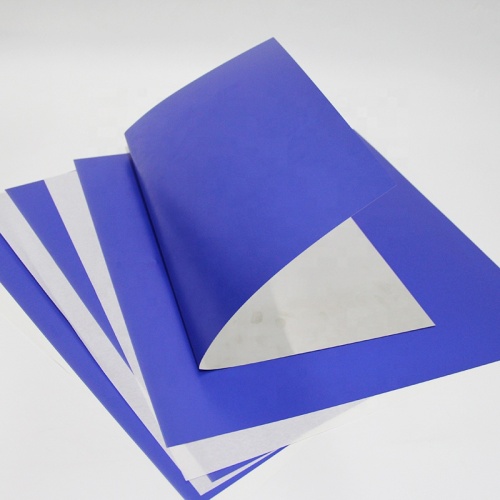

PRODUCT SHOW
