Computer-to-Plate (CTP) technology is the most advanced plate-making technology for contemporary offset printing plate making, and the plate material it uses is called CTP plate. After the conventional CTP plate is scanned and exposed by the CTP machine, Double Layer Ctcp Plate needs to be developed and processed by an alkaline developer before it can be printed on an offset press. In order to reduce or reduce and eliminate the pollution caused by the use of the plate to the environment, in recent years, the CTP plate without treatment, chemical treatment or low chemical treatment has been introduced. Processless Ctcp Plate can be printed directly on the machine or after exposure with a simple chemical-free treatment solution. This new type of CTP plate is now commonly known as the environmentally friendly CTP plate. The environmentally friendly CTP plate is not only conducive to environmental protection, but also simplifies the plate making process operation. Its advent is generally welcomed by the global offset printing industry.

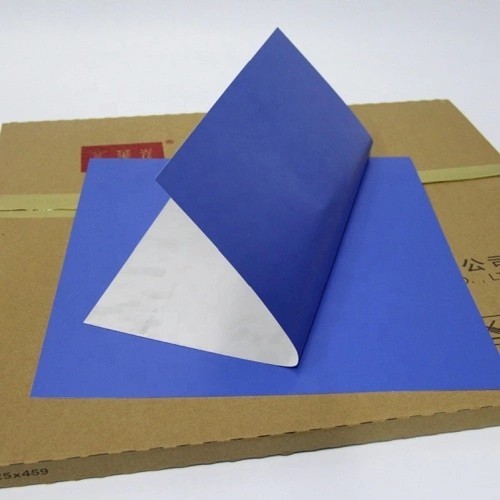

Iguang conventional PS plate for uv-ink printing features the outsta

Complex grain structure & dense oxidized layer.

 Excellent dot reproduction

 Matte layer to shorten vacuuming time(for UV-PS)

 Wide ltitude of development and exposure

Suitable for pinting materials: PE, PET, POP, synthetic paper, and other non-absorbent materials

Main features:

Plate type: positive

Substrate: Electro-chemically grained and anodized litographic  aluminum

Gauge: 0.15/0.25/0.30(mm)

Maximum width: 1320mm

 Spectral sensitivit: 350-420nm

Safelights: UV fltered or Yellow light
Sensitivity: 80-110 mj /cm?

Color change: Blue-Green after exposed

Developer: Huaguang PD develoeroncnrated slutio), 1liter can process 15 sqm. Recommended dlutioratio: 1:4(machine prces), 1:5(manual prcess)

Dot reproduction: 2%-98% in 200 inesinch

Packaging: 0.15mm- 100 picesbox, 0.25/0. 30mm-50 pieces/box if length <1030mm; 30 iesexx lengh 130mm; 25 pics /box ศ the areas tm2

Shelf life: 18 months
