CTP Violet Photopolymer CTP Plate

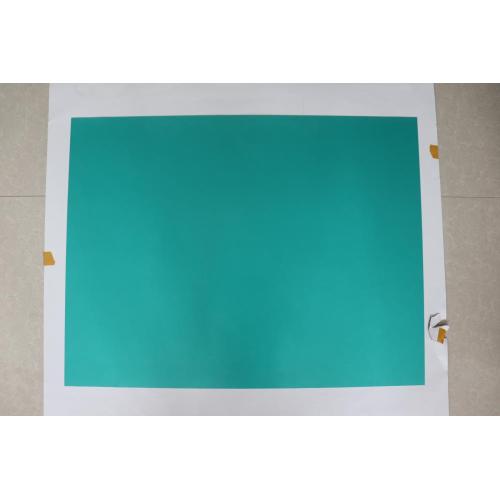

PPVS VIOLET PHOTOPOLYMER CTP PLATE

Plate Type

Negative working, violet photopolymer digital plate

Application

Newspaper/Commercial printing

Substrate

Electrochemically grained and anodized aluminum substrate

Gauge

0.15/0.20/0.25/0.30/0.40mm

Maximum width

1320mm

Spectrum scope

405nm

Platesetter compatibility

All the main brands in market,like Agfa/FFEI&FUJI/ Krause/ECRM/Highwater/Escher-Grad/Dotline

Sensitivity

70-80mj/cm²

Safe light

For manual handling and platesetting loading, darkroom conditions with G10 safelight is required

Dot reproduction

3% to 97% @ 175 lpi under calibration

Run length

More than 150,000 impressions.
Actual run length may vary according to press/paper/ink conditions

Processors

Recommended: Glunz&Jensen Raptor, Height inca/maya etc.

Developer

Huaguang PPD, FUJI LP-DWS, Agfa PL-10, IMAF NEGA 910

Processing

Preheat temp setting 90-100°C (plate surface temp.)
For HuaGuang PPD: Developer, temperature 22-24°C /Dwell time 16-17 seconds For FUJI LP-DWS: Developer temperature 25-26°C /Dwell time 16-17 seconds
For Agfa PL-10:Developer temperature 24°C /Dwell time 17 seconds

Packaging

0.15mm 100 pieces/box

0.25/0.30mm 50 pieces/box if length <1030mm;

                       30 pieces/box if length ≥1030mm;

                       25 pieces/box if the area > 1m2

Shelf life

12 months, under recommended storage conditions

Transportation and Storage

Store plates flat in their packaging (un-opened), away from excessive cold, heat or high humidity at 15°C -26°C, with RH between 40 - 70%.
