double layer ctp plate system

Get Latest Price

Transportation:: Ocean, Land, Air

Port:: ShangHai Port, Ningbo Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Supply Ability:	Strong
Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW
Transportation:	Ocean,Land,Air
Port:	ShangHai Port,Ningbo Port

Product Description

double layer ctp plate system is a comprehensive and multidisciplinary product, double layer ctp plate set is a collection of optical technology, electronic technology, color digital image technology, computer software and hardware, precision instruments and plate technology, automation technology, network technology Technology and other new technologies in one high-tech technology.
CTP plate (Computer to plate): From the computer directly to the printing plate, that is, "offline direct plate making". It was first developed from photo-to-plate making, all using computer-controlled laser scanning and imaging, and then printing plates through processes such as developing and fixing. This technology eliminates the intermediate medium of film, and enables text and images to be directly converted into numbers. Double layer ctp plate search reduces the quality loss and material consumption in the intermediate process. This is usually the CTP version.

TECHNICAL DATA

Positive Thermal Ctp Plate

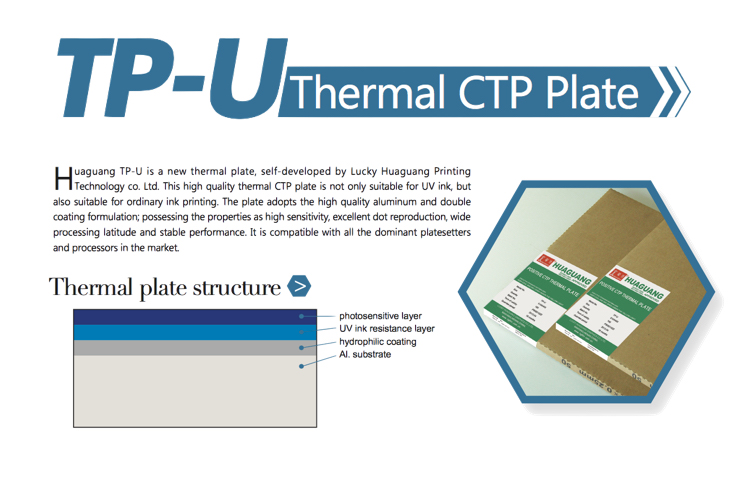

TP-U DOUBLE LAYER THERMAL CTP PLATE
Plate Type	Positive working, no preheat thermal digital plate, with optional postbake for longer runs
Application	Medium for sheetfed, web offset press
Substrate	Electrochemically grained and anodized aluminum substrate
Gauge	0.15/0.20/0.25/0.30/0.40mm
Maximum width	1320mm
Spectrum scope	800-850nm
Platesetter compatibility	All the main brands in market, like Kodak Trendsetter/ Lotem/Magnus, Screen PT-R, Heidelberg Topsetter/ Suprasetter etc.
Sensitivity	110-130mj/cm²
Safe light	Unpack it under day light or yellow light and the plate making operation should avoid high light.
Coating color	Dark blue
Dot reproduction	1% to 99% 200lpi. Depend upon capability of imaging device
Run length	50,000 impressions with UV ink; 300,000 impressions with ordinary ink;
FM capability	20 micron stochastic.
Developer	TPD-III developer(26±1°C, 25±5S)/TPD-80 developer(26±1°C, 25±5S) are recommended and the replenishment with the above mentioned developers.
Development	Huaguang TPD-80, 23°C/25 seconds, Kodak Goldstar Premium/IMAF Therm 830 23°C/30 seconds
Packaging	0.15mm 100 pieces/box 0.25/0.30mm 50 pieces/box if length <1030mm; 30 pieces/box if length ≥1030mm; 25 pieces/box if the area > 1m2
Shelf life	18 months, under recommended storage conditions
