Double Layer Ctp Plate Plate is close to or lower than the operating cost of the traditional printing process: in addition to the cost saving reasons mentioned above, due to the continuous decline in the cost of consumables such as Double Layer Ctp Plate Plate Carrier plate, now comprehensively calculated, double The normal operating cost of layer ctp plate online is close to or lower than the comprehensive cost of the traditional film printing process.
If CTcP (and UV-CTP, CTdP, etc.) is used, whether the cost is greatly reduced is not a one-sentence summary. Double Layer Ctp Plate Plate Holder is related to process selection, model performance, equipment price, plate brand, Many factors such as plate type, processor performance, plant conditions, job characteristics, control habits, and management systems are related.
TECHNICAL DATA
|
TP-U DOUBLE LAYER THERMAL CTP PLATE |
|
|
Plate Type |
Positive working, no preheat thermal digital plate, with optional postbake for longer runs |
|
Application |
Medium for sheetfed, web offset press |
|
Substrate |
Electrochemically grained and anodized aluminum substrate |
|
Gauge |
0.15/0.20/0.25/0.30/0.40mm |
|
Maximum width |
1320mm |
|
Spectrum scope |
800-850nm |
|
Platesetter compatibility |
All the main brands in market, like Kodak Trendsetter/ Lotem/Magnus, Screen PT-R, Heidelberg Topsetter/ Suprasetter etc. |
|
Sensitivity |
110-130mj/cm2 |
|
Safe light |
Unpack it under day light or yellow light and the plate making operation should avoid high light. |
|
Coating color |
Dark blue |
|
Dot reproduction |
1% to 99% 200lpi. Depend upon capability of imaging device |
|
Run length |
50,000 impressions with UV ink; 300,000 impressions with ordinary ink; |
|
FM capability |
20 micron stochastic. |
|
Developer |
TPD-III developer(26±1°C, 25±5S)/TPD-80 developer(26±1°C, 25±5S) are recommended and the replenishment with the above mentioned developers. |
|
Development |
Huaguang TPD-80, 23°C/25 seconds, Kodak Goldstar Premium/IMAF Therm 830 23°C/30 seconds |
|
Packaging |
0.15mm 100 pieces/box 0.25/0.30mm 50 pieces/box if length <1030mm; 30 pieces/box if length ≥1030mm; 25 pieces/box if the area > 1m2 |
|
Shelf life |
18 months, under recommended storage conditions |

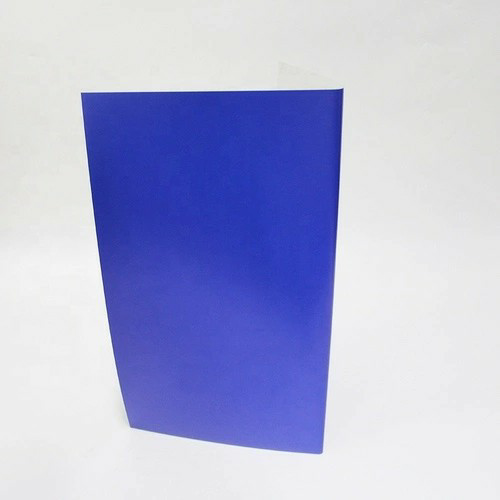

TP-U Double layer coating thermal ctp plate huaguang positive thermal CTP plate
