Double layer ctp plate display has many advantages. It eliminates post-process and improves production efficiency. It does not need chemical development and reduces exposure time.
The amount of energy consumption, Double Layer Ctp Plate Diner reduces the overall cost of plate making, shortens the cycle of the plate making process, in today's increasing emphasis on environmental protection, its advantages -
No pollution to the environment, more obvious Although Double Layer Ctp Plate Example is more expensive than conventional CTP plate In terms of overall plate making cost, Double Layer Ctp Plate Edge can save 35% of the total cost, so the price per process-free plate is high Also justifiable.
TECHNICAL DATA
|
TP-U DOUBLE LAYER THERMAL CTP PLATE |
|
|
Plate Type |
Positive working, no preheat thermal digital plate, with optional postbake for longer runs |
|
Application |
Medium for sheetfed, web offset press |
|
Substrate |
Electrochemically grained and anodized aluminum substrate |
|
Gauge |
0.15/0.20/0.25/0.30/0.40mm |
|
Maximum width |
1320mm |
|
Spectrum scope |
800-850nm |
|
Platesetter compatibility |
All the main brands in market, like Kodak Trendsetter/ Lotem/Magnus, Screen PT-R, Heidelberg Topsetter/ Suprasetter etc. |
|
Sensitivity |
110-130mj/cm2 |
|
Safe light |
Unpack it under day light or yellow light and the plate making operation should avoid high light. |
|
Coating color |
Dark blue |
|
Dot reproduction |
1% to 99% 200lpi. Depend upon capability of imaging device |
|
Run length |
50,000 impressions with UV ink; 300,000 impressions with ordinary ink; |
|
FM capability |
20 micron stochastic. |
|
Developer |
TPD-III developer(26±1°C, 25±5S)/TPD-80 developer(26±1°C, 25±5S) are recommended and the replenishment with the above mentioned developers. |
|
Development |
Huaguang TPD-80, 23°C/25 seconds, Kodak Goldstar Premium/IMAF Therm 830 23°C/30 seconds |
|
Packaging |
0.15mm 100 pieces/box 0.25/0.30mm 50 pieces/box if length <1030mm; 30 pieces/box if length ≥1030mm; 25 pieces/box if the area > 1m2 |
|
Shelf life |
18 months, under recommended storage conditions |

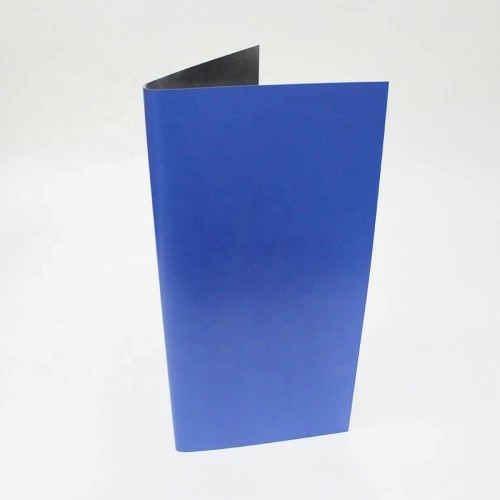

TP-U Double layer coating thermal ctp plate huaguang positive thermal CTP plate
