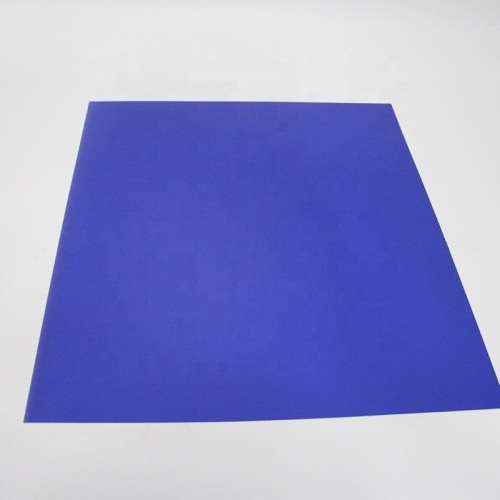

Double layer coating thermal ctp plate huaguang positive thermal CTP plate
2 Layers Thermal CTP plate is kind if plate specialized for violet ctp platesetters for hight-level printing ,High Sensitivity CTP plate can be scanned by 410mm laser ontrolled by computer ,and mounted on the press for printing after preheating ,rising ,developing,etc. Chemical-free Ctp Plate plate isapplid many latest technologies like excellent roughed aluminum substrate,high-resolution formulation design and advanced mlti-layer coationg technology. These avanced technologiedensure the quality and stable property.
Transport and storage
Plates should be kept at a place dry and cool. The shelf life could be up to 12 months with a temperature between 15-30°C and RH 25-60%. They also should avoid the place where is too close to water tank, chemical reagent or direct sunlight. Plates should be used up as quickly as possible after unpack and they should be put in the original package and take measures to avoid light if they need short-term storage. Usually, under the yellow light, it can be left for 8 hours, and 2 hours under white or natural light.
Operation
New Technology Ctp Plate Unpack under day light or yellow light, it is suggested that the plate making room avoid natural light. For manual or semi-automatic plate-making equipments, when loading and unloading plates, we should avoid scratch, which may in uence plate properties.
TECHNICAL DATA
|
TP-U DOUBLE LAYER THERMAL CTP PLATE |
|
|
Plate Type |
Positive working, no preheat thermal digital plate, with optional postbake for longer runs |
|
Application |
Medium for sheetfed, web offset press |
|
Substrate |
Electrochemically grained and anodized aluminum substrate |
|
Gauge |
0.15/0.20/0.25/0.30/0.40mm |
|
Maximum width |
1320mm |
|
Spectrum scope |
800-850nm |
|
Platesetter compatibility |
All the main brands in market, like Kodak Trendsetter/ Lotem/Magnus, Screen PT-R, Heidelberg Topsetter/ Suprasetter etc. |
|
Sensitivity |
110-130mj/cm2 |
|
Safe light |
Unpack it under day light or yellow light and the plate making operation should avoid high light. |
|
Coating color |
Dark blue |
|
Dot reproduction |
1% to 99% 200lpi. Depend upon capability of imaging device |
|
Run length |
50,000 impressions with UV ink; 300,000 impressions with ordinary ink; |
|
FM capability |
20 micron stochastic. |
|
Developer |
TPD-III developer(26±1°C, 25±5S)/TPD-80 developer(26±1°C, 25±5S) are recommended and the replenishment with the above mentioned developers. |
|
Development |
Huaguang TPD-80, 23°C/25 seconds, Kodak Goldstar Premium/IMAF Therm 830 23°C/30 seconds |
|
Packaging |
0.15mm 100 pieces/box 0.25/0.30mm 50 pieces/box if length <1030mm; 30 pieces/box if length ≥1030mm; 25 pieces/box if the area > 1m2 |
|
Shelf life |
18 months, under recommended storage conditions |
