1. Conventional PS plate Template uv protection: One side of THE PC board is coated with anti-ultraviolet (UV) coating, and the other side has anti-condensation processing, set anti-ultraviolet, heat insulation anti-dew function in a suit, can prevent ultraviolet through, and suitable for the protection of valuable works of art and exhibits, so that it is not damaged by ultraviolet.Light weight: the proportion is only half of glass, saving the cost of transportation, unloading, installation and supporting frame.
2.Conventional Postive Ps Plate Vibration uses its excellent physical characteristics on many lines Industries occupy a place, especially in the building materials industry and agriculture Industry has played a particularly important role. Conventional Positive Ps Plate Vs Independiente is low carbon,Environmental protection, organic new plastic building materials.
|

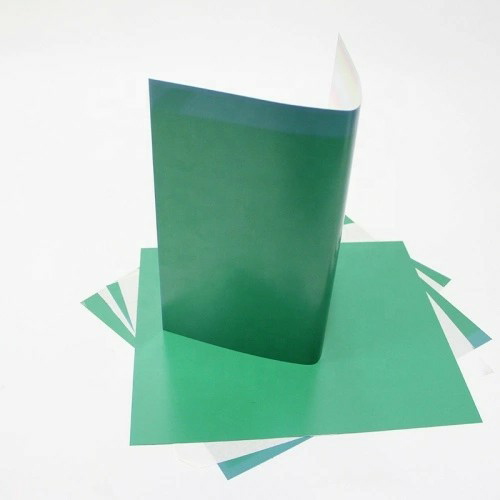

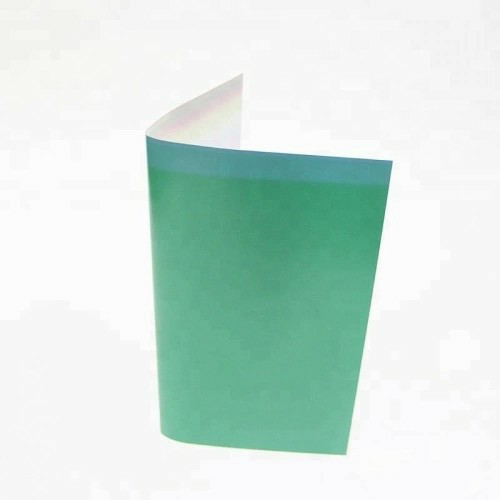

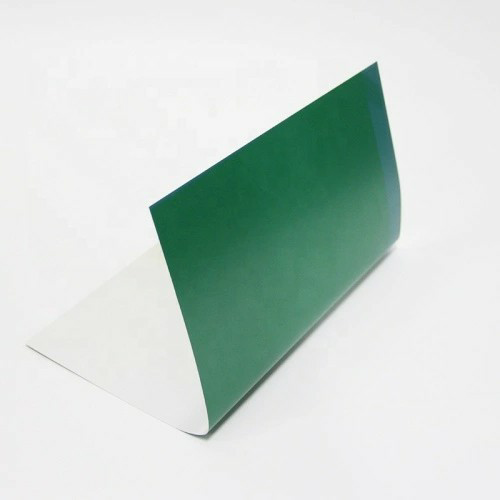

YP-II POSITIVE PS PLATE |
|
|
Plate type |
Positive |
|
Application |
Commercial sheetfed and rotary press printing |
|
Substrate |
Electro-chemically grained and anodized lithographic aluminum. |
|
Gauge |
0.15/0.25/0.30/0.40mm |
|
Maximum width |
1320mm |
|
Spectrum scope |
350-420nm |
|
Sensitivity |
130-150mj/cm2 |
|
Safe light |
UV filtered or Yellow light |
|
Coating color |
Green |
|
Dot reproduction |
2%-98%@ 200lpi Depend upon capability of imaging device |
|
Run length |
Above 100,000 |
|
Developer |
Huaguang PD developer (concentrated solution), |
|
Development |
1 liter can process 15 sqm Developer dilute ratio: 1:4(machine)-1:6(hand) Developing Temperature: 24-26℃ Developing Time: 20-30secs |
|
Packaging |
0.15mm 100 pieces/box 0.25/0.30mm 50 pieces/box if length <1030mm; 30 pieces/box if length ≥1030mm; 25 pieces/box if the area > 1m2 |
