Below I will introduce some distinguishing conventional postive PS plate plate carrier is good or bad is very practical
Methods:
1. Pinch Conventional Postive Ps Plate Quest by hand. PC endurance plate proportion is sufficient, the strength of nature is good. Conversely, it is lighter than the strength is not enough. Maintain the neatness of the film.
2. Observe Conventional Postive Ps Plate Rotation packaging. Clean, there is no fall off, these details can show whether the manufacturer attaches importance to the production process. This study mainly reflects the attitude and observes whether the Conventional Positive Ps Plate Renewal color is uniform.
|

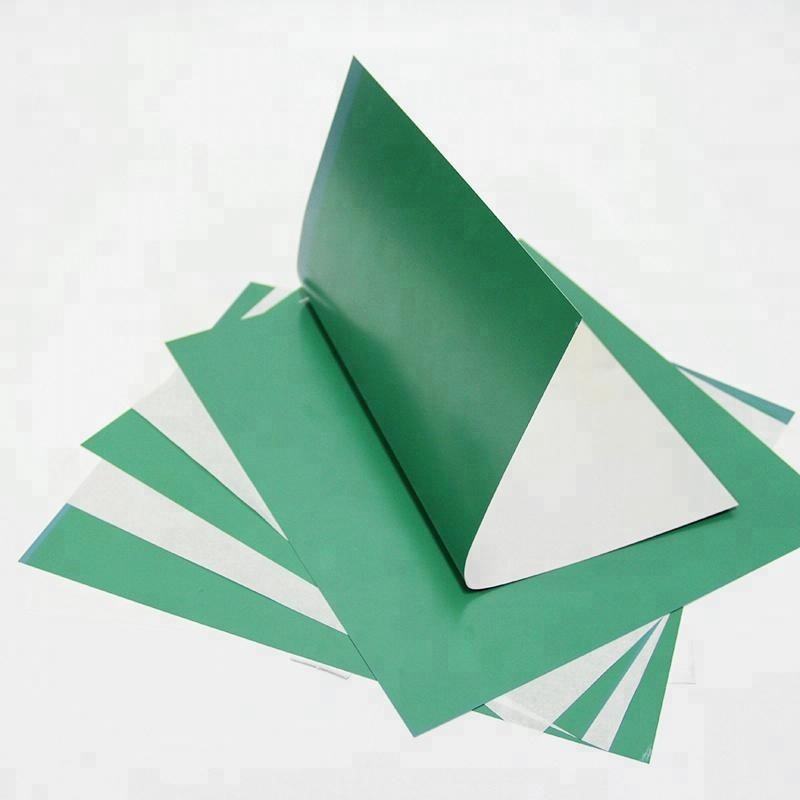

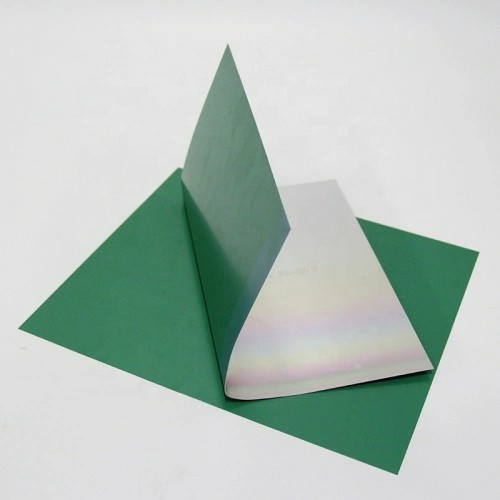

YP-II POSITIVE PS PLATE |
|
|
Plate type |
Positive |
|
Application |
Commercial sheetfed and rotary press printing |
|
Substrate |
Electro-chemically grained and anodized lithographic aluminum. |
|
Gauge |
0.15/0.25/0.30/0.40mm |
|
Maximum width |
1320mm |
|
Spectrum scope |
350-420nm |
|
Sensitivity |
130-150mj/cm2 |
|
Safe light |
UV filtered or Yellow light |
|
Coating color |
Green |
|
Dot reproduction |
2%-98%@ 200lpi Depend upon capability of imaging device |
|
Run length |
Above 100,000 |
|
Developer |
Huaguang PD developer (concentrated solution), |
|
Development |
1 liter can process 15 sqm Developer dilute ratio: 1:4(machine)-1:6(hand) Developing Temperature: 24-26℃ Developing Time: 20-30secs |
|
Packaging |
0.15mm 100 pieces/box 0.25/0.30mm 50 pieces/box if length <1030mm; 30 pieces/box if length ≥1030mm; 25 pieces/box if the area > 1m2 |
