Product Description

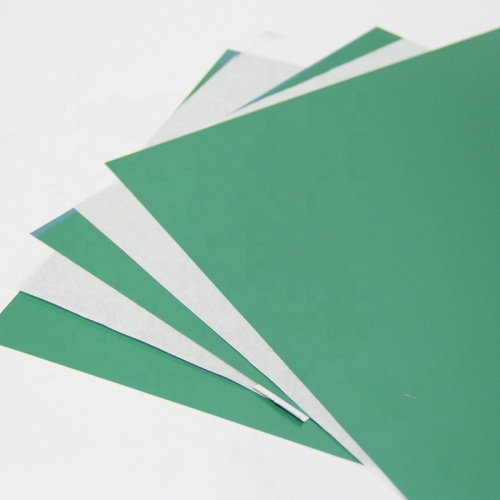

Huaguang Offset Lithographic Printing Aluminum Ps Plate

TECHNICAL DATA

Anti-uv Positve Ps Plate Shelf life :

18 months when stored in a light-free area away from excessive cold, heat and high humidity

Ps Printing Plate For Print Transport and storage:
Store plates at in their packaging, away from excessive cold, heat or high humidity.
Ps Printing Plate Recommended condition is: temperature 10-26°C & RH between 40 - 70%.

YP-II POSITIVE PS PLATE
Plate type	Positive
Application	Commercial sheetfed and rotary press printing
Substrate	Electro-chemically grained and anodized lithographic aluminum.
Gauge	0.15/0.25/0.30/0.40mm
Maximum width	1320mm
Spectrum scope	350-420nm
Sensitivity	130-150mj/cm2
Safe light	UV filtered or Yellow light
Coating color	Green
Dot reproduction	2%-98%@ 200lpi Depend upon capability of imaging device
Run length	Above 100,000
Developer	Huaguang PD developer (concentrated solution),
Development	1 liter can process 15 sqm Developer dilute ratio: 1:4(machine)-1:6(hand) Developing Temperature: 24-26℃ Developing Time: 20-30secs
Packaging	0.15mm 100 pieces/box 0.25/0.30mm 50 pieces/box if length <1030mm; 30 pieces/box if length ≥1030mm; 25 pieces/box if the area > 1m2
