Offset Aluminium Matt Surface Negative PS Printing Plate
- Transportation:
- Ocean, Land, Air
- Port:
- ShangHai Port, Ningbo Port
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | Strong |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF,EXW |
| Transportation: | Ocean,Land,Air |
| Port: | ShangHai Port,Ningbo Port |
China supplier offset aluminium matt surface negative ps printing plate
TECHNICAL DATA
Shelf life :
Anti-uv Positve Ps Plate 18 months when stored in a light-free area away from excessive cold, heat and high humidity
Transport and storage:
Store plates at in their packaging, away from excessive cold,Lithography Offset Ps Plates heat or high humidity. Recommended condition is: temperature 10-26°C & RH between 40 - 70%.
|
YP-II POSITIVE PS PLATE |
|
|
Plate type |
Positive |
|
Application |
Commercial sheetfed and rotary press printing |
|
Substrate |
Electro-chemically grained and anodized lithographic aluminum. |
|
Gauge |
0.15/0.25/0.30/0.40mm |
|
Maximum width |
1320mm |
|
Spectrum scope |
350-420nm |
|
Sensitivity |
130-150mj/cm2 |
|
Safe light |
UV filtered or Yellow light |
|
Coating color |
Green |
|
Dot reproduction |
2%-98%@ 200lpi Depend upon capability of imaging device |
|
Run length |
Above 100,000 |
|
Developer |
Huaguang PD developer (concentrated solution), |
|
Development |
1 liter can process 15 sqm Developer dilute ratio: 1:4(machine)-1:6(hand) Developing Temperature: 24-26℃ Developing Time: 20-30secs |
|
Packaging |
0.15mm 100 pieces/box 0.25/0.30mm 50 pieces/box if length <1030mm; 30 pieces/box if length ≥1030mm; 25 pieces/box if the area > 1m2 |

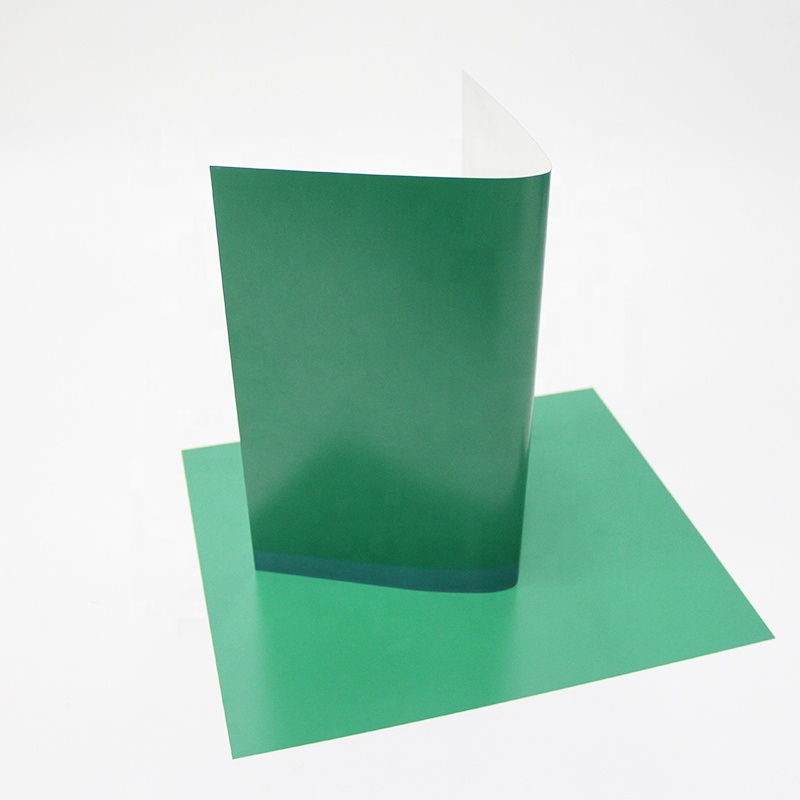

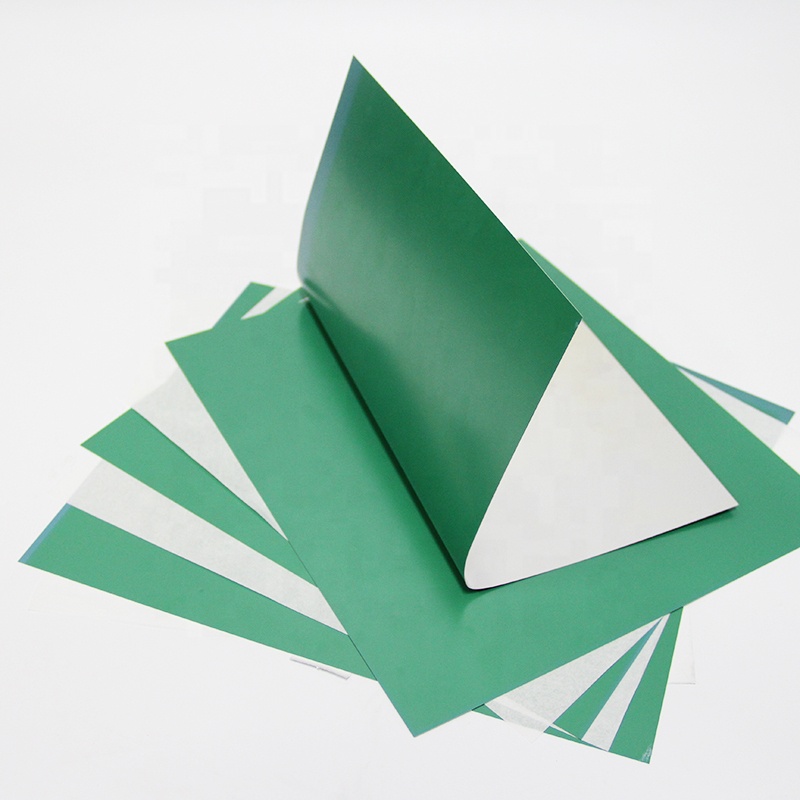

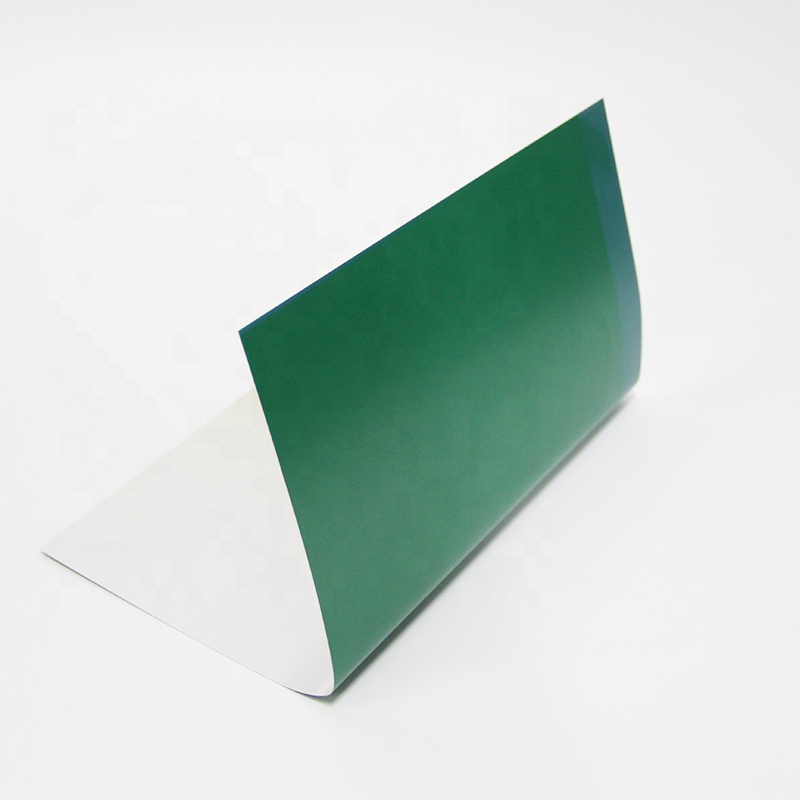

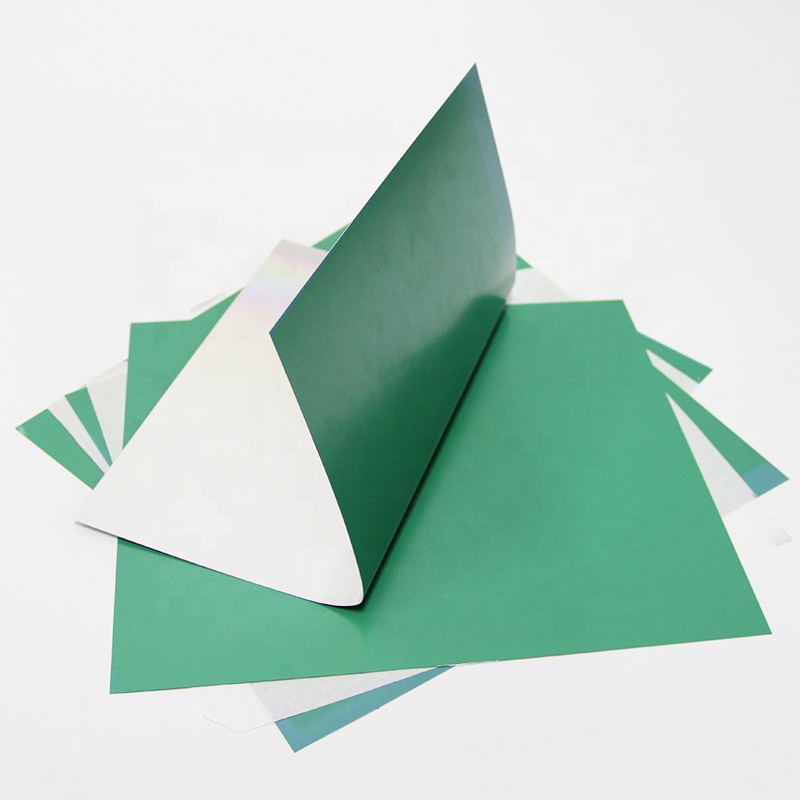

PRODUCT SHOW
China supplier matt surface negative ps printing plate offset aluminium
China supplier matt surface negative ps printing plate offset aluminium
China supplier matt surface negative ps printing plate offset aluminium
China supplier matt surface negative ps printing plate offset aluminium
