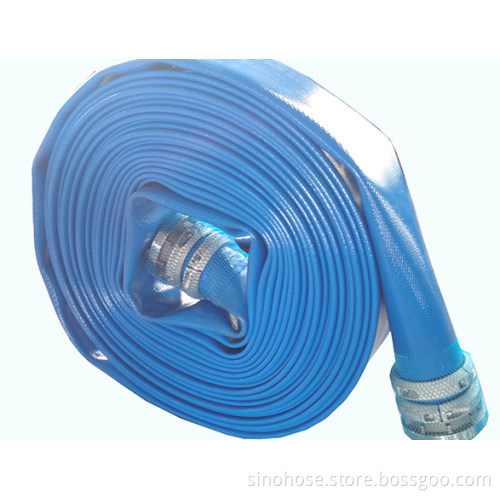

Frac PU Layflat Hose

Construction of flat food grade hose :The outer cover of our PU layflat hose  has been produced with extra thickness for tough environment.  The wokking temprearue of our PU layflat hose range from -50 C deg to 80 C deg (-58 F deg to +176 F deg).

Our fracking hose is made from extruded thermoplastic polyurethane(TPU) and  circular woven polyester jacket. The "through-the-weave" production method gives a very strong bonding between cover and tube as well as firmly adhesive of the jacket.

The hose has high resistance against commonly used chemicals and has excellent resistance to UV. The abrasion resistance of the PU layflat hose  is very good, making the hose ideal for use in the extremely tough places.

Specification of Frac PU Layflat Hose
ID Wall
thickness Weight WP BP Tensile
Strength Elongation
at WP Expansion
at WP
Inch Inch Ibs/ft kg/m PSI PSI Ibs
4" 0.15 1.35 2 300 900 22000 ＜1% ＜3%
6" 0.15 1.68 2.5 250 750 33000 ＜1% ＜3%
8" 0.17 2.01 3 200 600 89000 ＜1% ＜3%
10" 0.17 2.8 4.2 200 600 100100 ＜1% ＜3%
12" 0.17 3.3 5 150 450 134000 ＜1% ＜3%
