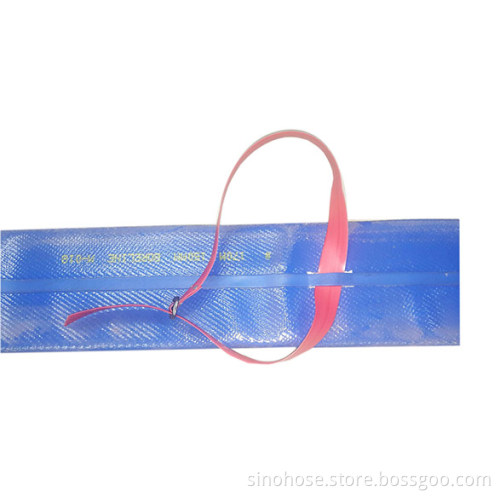

Waterwell PU Layflat Hose

Established in 1990, SUZHOU SEAPEAK CO., LTD. is one of the professional PVC hose pipe manufacturers and hose fittings manufacturers in China. Covering 6000 square meter, We now have annual sales turnovers in excess of USD15,000,000 and more than 60 workers at our factory. Our ISO9001 certification further demonstrates our commitment to providing high quality products.

Application: pump well water and mine dewatering
Operating Temperature Range: From-60℉ to 176℉(-50℃ to 80℃)
Standard Color: red, black, green, blue and other.
Standard Length: 1-200M
Warranty: 5years

Water pump flexible hose is made of high-strength polyester jacket, PU cover and PU tube. We produce the PU layflat water well hose in one step of through-the weave procedure. The polyester filament of the PU layflat hose is specialized produced for the hose. Our PU are imported from Germany. Quality material guarantee our long service life.

Waterwell PU layflat hoses are connected with submersible pump and are very easy to be installed and uninstalled.

Specification of Waterwell PU Layflat Hose
ID Wall Thickness Weight WP BP
Inch mm Inch mm lbs/ft kg/m PSI/bar PSI/bar
1 1/2" 39+1.5 0.10" 2.4 0.22 0.33 450PSI/30bar 1350PSI/90bar
2" 52+1.5 0.10" 2.4 0.37 0.55 450PSI/30bar 1350PSI/90bar
2 1/2" 65+1.5 0.11" 2.9 0.41 0.61 450PSI/30bar 1350PSI/90bar
3" 77+2.0 0.10" 2.5 0.64 0.95 300PSI/20bar 900PSI/60bar
4" 104+2.0 0.13" 3 0.94 1.4 300PSI/20bar 900PSI/60bar
5" 128+2.0 0.15" 3.8 1.14 1.7 300PSI/20bar 900PSI/60bar
6" 155+2.5 0.15" 3.8 1.68 2.5 300PSI/20bar 900PSI/60bar
8" 204+3.0 0.17" 4.3 2.3 3.4 180PSI/15bar 540PSI/45bar
