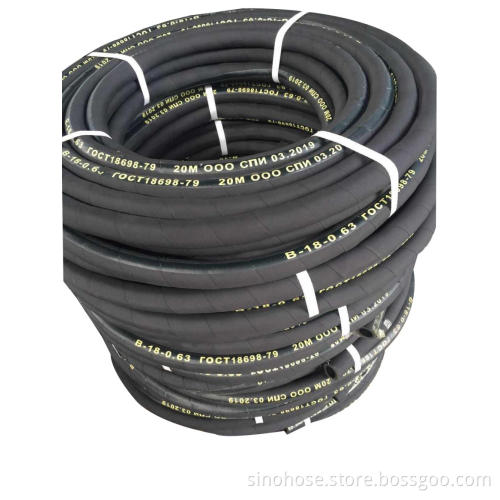

Rubber Oil Suction Hose

Established in 1990, SUZHOU SEAPEAK CO., LTD. is one of the professional PVC hose pipe manufacturers and hose fittings manufacturers in China. Covering 6000 square meter, We now have annual sales turnovers in excess of USD15,000,000 and more than 60 workers at our factory. Our ISO9001 certification further demonstrates our commitment to providing high quality products.

Construction:
Tube: Black, smooth, Nitrile rubber.
Reinforcement: Multi piles high strength synthetic fabric and steel wire helix skeleton.
Cover: Black, wrapped surface, smooth and corrugated cover available, weather and ozone resistant, synthetic rubber.

Application:
For suction and discharge of petroleum-based products, diesel, gasoline, lubricants, fuel, with aromatic content up to 50%

Temperature:
-40℃ (-104°F) to 80℃ (+176°F)

Characteristics:
For aromatic content up to 50%
Excellent oil-resistance
Small bend radius

Specification of Rubber Oil Suction Hose
I.D O.D W.P VACUUM L
Inch mm mm bar psi Kpa inch psi m ft
3/4" 19.1 31 10 150 -80 6 15 60 200
1" 25.4 37 10 150 -80 6 152 60 200
1-1/4" 31.8 44 10 150 -80 8 200 60 200
1-1/2" 38.1 51 10 150 -80 9 230 60 200
2" 50.8 64 10 150 -80 10 254 60 200
2-1/2" 63.5 76 10 150 -80 15 380 60 200
3" 76.2 91 10 150 -80 18 460 60 200
3-1/2" 88.9 105 10 150 -80 22 550 60 200
4" 101.6 118 10 150 -80 24 610 40 130
5" 127 145 10 150 -80 30 760 30 100
6" 152.4 170 10 150 -80 36 916 30 100
8" 203.2 224 10 150 -80 48 1200 30 100
10" 254 282 10 150 -80 50 1250 10 33
12" 304.8 328 10 150 -80 60 1520 10 33
14" 350 380 10 150 -80 60 1520 10 33
