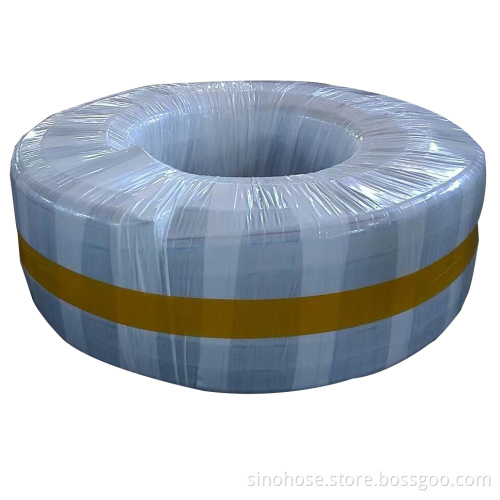

PVC Gas Hose

Apply to: convey gas and liquid under low pressure. Specially suitable for LPG-6 in family.
Temperature: -10ºC ~65ºC
Characteristics: soft, elastic, bright and brilliant

PVC gas line is made of pvc cover and pvc tube reinforced with polyester yarn.

Specification of pvc hose China
NOMINAL DIMENSION PART# HOSE DIMENSION OPERATION PRESSURE BURSTING PRESSURE
I.D. O.D. LENGTH
INCH MM MM M MPA MPA
5/16" PVCGAS8514 8.5 14 50 0.3 0.9
3/8" PVCGAS0914 9 14 50 0.3 0.9
3/8" PVCGAS1015 10 15 50 0.3 0.9
1/2" PVCGAS1320 13 20 50 0.2 0.6

Recommended Products
Concrete PU Layflat Hose
Application: concrete tranporation
Inner tube and cover: Smooth PU cover and tube
Reinforcement: polyester jacket
Operation Temperature Range：From -60° F to 176° F(-50° C to 80° C)
Standard Length: 1-100M

Rubber Oil Discharge Hose-wrapped Surface
Construction:
Tube: Black, smooth, Nitrile.
Rubber Water Discharge Hose
Construction:
Tube: Black, NR, SBR rubber compound
Reinforcement: 1ply or 2ply high tensile polyester thread braiding, Multi piles high strength synthetic fibre.
Cover: Black, Red ,Blue, and so on, smooth surface, cloth impression ,SBR rubber compound.
Reinforcement: Multi plies high strength synthetic fabric.
Cover: Black, wrapped surface, weather and abrasion resistant,s ynthetic rubber.

As one of the hose manufacturers, we have been made China pvc hose for many years, so if you have any needs, please contact us.
