PVC Air Hose

Characteristics: light –weight, wear resistance, erosion resistance, good flexibility
Working Temperature: -5°C-65°C

PVC air tube   are made of tough PVC materials and high tensile polyester reinforcement,it can work under very high pressure.
Apply to: some pneumatic tools, pneumatic washing apparatus, compressors, engine components, machinery service tools, pesticide spraying apparatus and civil engineering pneumatic hammers

Specifications of PVC Air Hose
Item No. Type Hose dimension WP BP
I.D O.D Wall
Inch mm mm mm BAR BAR
PVCAIR-0611 1/4" 6 11 2.5 15 60
PVCAIR-0612 1/4" 6.5 12 2.75 20 60
PVCAIR-0814 5/16" 8.5 14 2.75 20 60
PVCAIR-1016 3/8" 10 16 3 20 60
PVCAIR-1320 1/2" 13 20 3.5 20 60
PVCAIR-1625 5/8" 16 25 4.5 20 60
PVCAIR-1928 3/4" 19 28.5 4.75 17 52
PVCAIR-2534 1" 25 34.5 4.75 16 48
PVCAIR-3244 1-1/4" 32 44 6 15 46
PVCAIR-3850 1-1/2" 38 50 6 15 45
PVCAIR-5064 2" 50 64 7 10 30

Recommended Products

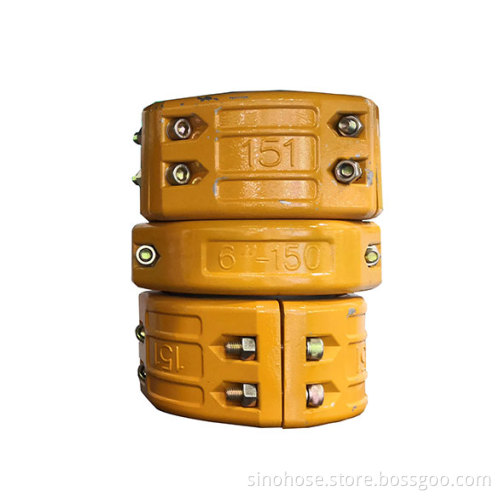

Ground Joint Coupling - Hose Stem
