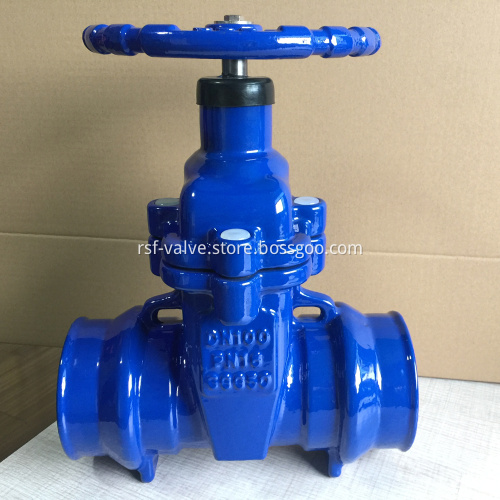

PVC Pipe Socket End Resilient Seat Gate Valve

The PVC Pipe Socket End Resilient Seat Gate Valve is widely used for PVC pipe system for very quickly installation. The resilient seated gate valve simple design makes it one of the most common water works valves in use.  the resilient seated gate valve can be applied to both liquid and gas services, although it is mostly used in liquid services. The soft seated gate valve was designed primarily for on-off service, where the resilient seated sluice valve is operated infrequently. The gate valve is not recommended to partly open the valve for adjustment of flow rate or emergent pressure relief blow-off. RSF’s resilient seated gate valve is widely used in the industry of potable water, sewage, and sea water.

Standard:

Basic Design: BS5163, DIN3352, EN1171, AS 2638.2, GOST, AWWA C509, AWWA C515

Face to Face: BS5163, DIN3202 F4 F5, ISO5752, ANSI B16.1

Flange Ends: EN1092-2, AS4087, GOST

Pressure Test: EN12266-1 Rating A

Design Feature:

OS & Y Rising Stem or Non-Rising Stem

Double Flange Ends, or Socket Ends for PVC pipe

Bolted Bonnet

Resilient Gate Provide Good Sealing Performance

FBE Coating (Fusion Bond Epoxy) Min. 300micron Thickness

Strong Ductile Iron Valve Body and Bonnet

Low Operating Torque

Size Range: DN50 to DN1200 or 2” to 60"

Pressure Rating: PN6 (0.6Mpa), PN10 (1Mpa), PN16 (1.6Mpa), Class 125

Material:

Body: Ductile Iron GGG50, GGG40, EN GJS 500-7

Stem: SS416, SS304, SS316, SS431

Bolt and Nut: 13Cr, SS304 (A2-70), SS316 (A4-70)

Seat: EPDM, NBR

Operation:

Handwheel, Key Cap, Bevel Gear, Spur Gear, Electric Actuator

Optional:

Bypass, Size: DN50, DN80, DN100, DN150

WRAS Approved Resicoat R4 Coating

Position Indicator

Stem Extension

AUMA, ROTORK IP67 IP68 Actuator

Thanks for your selection of RSF’s PVC Pipe Socket End Resilient Seat Gate Valve! If you have any inquiries of our water works valves of soft seat gate valve or swing check valve, please don’t hesitate to call us or email us!
