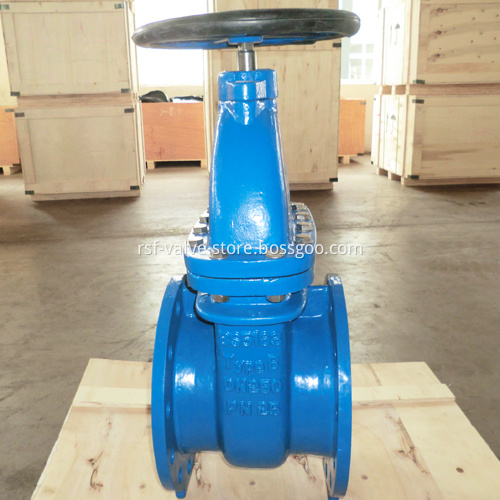

BS5163 Type-B Metal Seat Gate Valve

SUZHOU RSF VALVE is one of leading manufacturer of water works valve from China. We have more than 15 years experience in producing BS5163 Type B metal to metal seat gate valve, size range from DN50-2200, pressure rating PN10, PN16, PN25.

Our ductile iron BS5163 Type B metal to metal seat gate valve is one kind of water waters valves. Its simple design makes it one of the most common valves in use. It can be applied to both liquid and gas services, although it is mostly used in liquid services. The gate valve was designed primarily for on-off service, where the valve is operated infrequently. It is not recommended to partly open the valve for adjustment of flow rate or emergent pressure relief blow-off.

Standard:

Basic Design: BS5163, DIN3352, EN1171, AS 2638.1

Face to Face: BS5163, DIN3202 F4 F5, ISO5752

Flange Ends: EN1092-2, AS4087

Pressure Test: EN12266-1 Rating A

Design Feature:

BS5163 Metal Seat Gate Valve with Bypass

OS & Y Rising Stem or Non-Rising Stem

Double Flange Ends

Bolted Bonnet

Wedge Gate Valve

FBE Coating (Fusion Bond Epoxy) Min. 300micron Thickness

Size Range: DN50 to DN2000 or 2” to 80"

Pressure Rating: PN6, PN10, PN16, PN25

Material:

Body: Ductile Iron GGG50, GGG40, EN GJS 500-7

Stem: SS416, SS304, SS316, SS431

Seat: Bronze, Gunmetal LG2, Brass

Operation:

Handwheel, Key Cap, Bevel Gear, Spur Gear, Electric Actuator

Optional:

Bypass, Size: DN50, DN80, DN100, DN150

WRAS Approved Resicoat R4 Coating

AUMA, ROTORK IP67 IP68 Actuator

Warmly welcome to choose our BS5163 Type B metal to metal seat gate valve! If you have any inquiries of our water works valves such as metal to metal seat wedge gate valve, resilient seat gate valve, non return valve, butterfly valve, please don't hesitate to contact with us!
