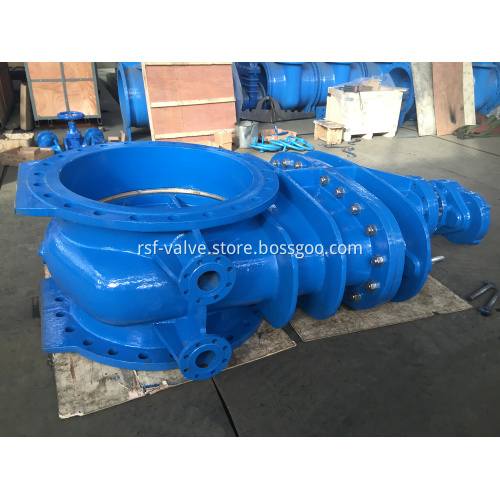

BS5163 Metal Seat Gate Valve with Bypass

RSF VALVE is a leading professional valve manufacturer from China. Our products include ductile iron GGG50 GGG40 ENGJS 500-7 metal seat (Gun metal LG2) gate valve, PN16 and PN25 BS5163, AS2683.1, DIN3352 are available.

Our ductile iron metal to metal seat gate valve is one kind of water waters valves. Its simple design makes it one of the most common valves in use. It can be applied to both liquid and gas services, although it is mostly used in liquid services. The gate valve was designed primarily for on-off service, where the valve is operated infrequently. It is not recommended to partly open the valve for adjustment of flow rate or emergent pressure relief blow-off.

Standard:

Basic Design: BS5163, DIN3352, EN1171, AS 2638.1

Face to Face: BS5163, DIN3202 F4 F5, ISO5752

Flange Ends: EN1092-2, AS4087

Pressure Test: EN12266-1 Rating A

Design Feature:

BS5163 Metal Seat Gate Valve with Bypass

OS & Y Rising Stem or Non-Rising Stem

Double Flange Ends

Bolted Bonnet

Wedge Gate

FBE Coating (Fusion Bond Epoxy) Min. 300micron Thickness

Size Range: DN50 to DN2000 or 2” to 80"

Pressure Rating: PN6, PN10, PN16, PN25

Material:

Body: Ductile Iron GGG50, GGG40, EN GJS 500-7

Stem: SS416, SS304, SS316, SS431

Seat: Bronze, Gunmetal LG2, Brass

Operation:

Handwheel, Key Cap, Bevel Gear, Spur Gear, Electric Actuator

Optional:

Bypass, Size: DN50, DN80, DN100, DN150

WRAS Approved Resicoat R4 Coating

AUMA, ROTORK IP67 IP68 Actuator
