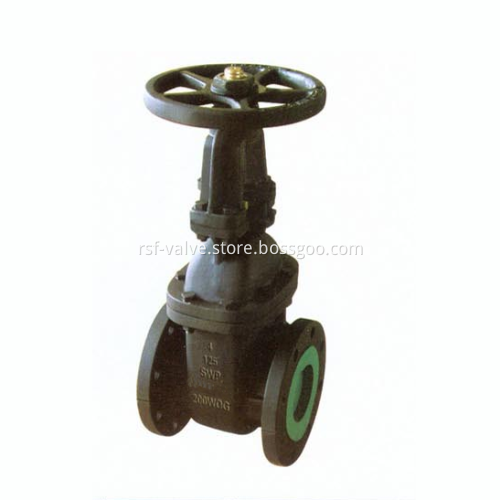

MSS SP-70 Rising Stem Gate Valve

The MSS SP-70 Rising Stem Gate Valve is widely used kind of water works valves in USA, South America. The MSS SP-70 Rising Stem Gate Valve simple design makes it one of the most common water works valves in use. The MSS SP-70 gate valve can be applied to both liquid and gas services, although the MSS SP-70 rising stem gate valve is mostly used in liquid services. The ASTM A536 ductile iron gate valve was designed primarily for on-off service, where the MSS SP GGC valve is operated infrequently. It is not recommended to partly open the gate valve for adjustment of flow rate or emergent pressure relief blow-off. Our MSS SP series cast/ductile iron gate valve, globe valve, and check valve are mainly exported to USA, South America, and Middle EAST Area. Our main customers for MSS SP GGC valves are WALWORTH, CRANE, and OARI etc.

Standard:

Basic Design: MSS SP-70

Face to Face: ASME B16.10 125LB

Flange Ends: ASME B16.1 125LB

Pressure Test: MSS SP-70

Design Feature:

OS & Y, Rising Stem

Bolted Bonnet

Wedge Gate

Size Range: 2" to 24"

Pressure Class: 125LB, 200WOG

Material:

Body: ASTM A126 Class B, ASTM A536

Stem: Brass ASTM B16

Seat Ring: Bronze ASTM B62

Operation:

Handwheel, Gear, Electric Actuator

Optional:

Non-Rising Stem

Thanks for your selection of RSF’s MSS SP-70 gate valve! If you have any inquiries of our water works valves such as MSS SP GGC valve, please don’t hesitate to call us or email us! We are looking forward to cooperation with you!
