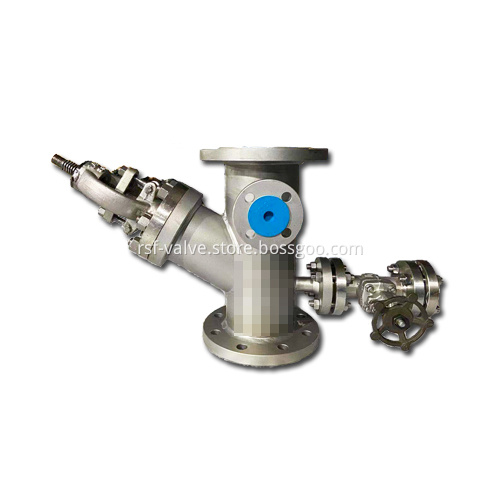

Y Globe valve with Jacket and Drain

RSF VALVE is a leading professional valve manufacturer from China. Our products includes casting steel WCB LCB WC6 WC9 C12A CF8 CF8M globe valve, forged steel A105N LF2 F11 F22 F304 F316 F304L F316L globe valve. We can provide special jacket y-type globe for chemical, food, pharmacy industries, ANSI class and PN pressure rating are available.

Our BS1873 Cast Steel Globe Valve is one kind of important oil and gas industry valves. The BS1873 cast steel globe valve’s trim is more than just a closure element (because a throttling valve does more than just open or close), but rather  it is a regulating element that allows the valve to vary the flow rate against the position of the valve according to the flow characteristic, which may be equal percentage, linear, or quick-open. Typically, this trim consists two key parts: the plug, which is the female portion of the regulating element, and the seat ring, which is the female portion. The portion of the plug that sets into the seat ring is called the plug head, and the portion that extends up through the top of the globe valve is called the plug stem.

The flow direction of BS1873 Cast Steel Globe valve is defined b the manufacturer or the application, although in most manual applications, flow direction is almost always under the plug. Seating the plug against the flow provides constant resistance but not enough to be insurmountable. With under-the-plug flow, the valve is relatively easy to close as long as the fluid pressure and flow rate are low to moderate. In addition, under-the-plug flow provides easy opening by the flow pushing against the bottom of the plug.

GGC valves means gate globe and check valves, the gate valve of them is usually used for on-off function. the swing check valve is for non return valve function. The globe valve is maily for regulating function as well as on-offer. The BS1873 cast steel globe valve can be amended design to be globe check valve which has non return valve function.

Standard:

Basic Design: BS1873, ASME B16.34

Face to Face: ASME B16.10, BS2080, EN558, ISO5752

Flange Ends: ASME B16.5, ASME B16.47, EN1092

BW Ends: ASME B16.25

Pressure Test: API 598, EN12266-1, BS6755

Design Feature:

OS & Y, Rising Stem

Bolted Bonnet or Pressure Seal Bonnet

Conic Disc, Plug Disc, Regulating Plug

Flange Ends or BW Ends

Straight Pattern or Y Type

Size Range: 2" to 24" (DN50 to DN600)

Pressure Class: Class 150 to Class 2500 (PN16 to PN420)

Material:

Body: WCB, LCB, LCC, WC1, WC6, C5, CF8, CF8M, CF3, CF3M, CF8C, 4A, 5A

Stem: F6a, F304, F316, F304L, F316L, F321, F51

Trim: Trim 1, Trim 2, Trim 8, Trim 5, HF HFS, API 600 2009 Table 8

Painting: Anti-Rust Epoxy, Silver Grey RAL9006

Operation:

Handwheel, Impact Handwheel, Gear, Electric Actuator

Optional:

Special Class, Globe Check Valve

NACE MR 01-75, Lock Device

Y-Type, Jacket

Thanks for your selection of RSF’s BS1873 cast steel globe valve! If you have any inquiries of our oil and gas valves such as globe check valve, gate vavle and check valve, please don’t hesitate to call us or email us!
