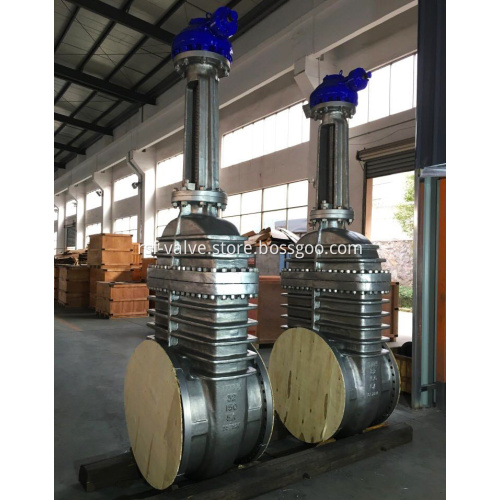

API 600 Stainless Steel Gate Valve

We are a leading manufactuer of oil and gas industry valves, we has more than 15years experience in producing cast steel gate globe and check valves.

The API 600 Stainless Steel Gate Valve simple design makes it one of the most common oil and gas industry valves in use. The steel gate valve can be applied to both liquid and gas services, although it is mostly used in liquid services. The API 600 Stainless Steel Gate Valve was designed primarily for on-off service for corrosive fluid, where the super duplex stainless steel gate valve is operated infrequently. The gate valve is not recommended to partly open the gate valve for adjustment of flow rate or emergent pressure relief blow-off. Usually the GGC valve means Gate Gobe and Check Valves, all of them here is under our oil and gas industry valves categories.

Standard:

Basic Design: API 600, ASME B16.47

Face to Face: ASME B16.10

Flange Ends: ASME B16.5, ASME B16.47

BW Ends: ASME B16.25

Pressure Test: API 598

Design Feature:

OS & Y, Rising Stem

Bolted Bonnet, Flange Ends

Flexible Wedge, Metal to Metal Seat

Size Range: 2" to 48"

Pressure Class: Class 150 to Class 2500

Material:

Body: WCB, LCB, LCC, WC1, WC6, C5, CF8, CF8M, CF3, CF3M, CF8C, 4A (UNS S31803), 5A (UNS S32750)

Stem: F6a, F304, F316, F304L, F316L, F321, F51, F53

Trim: HF HFS, API 600 2009 Table 8

Painting: Epoxy, RAL9006

Operation:

Handwheel, Gear, Electric Actuator

Optional:

Stem Extension, Gate Valve with Locking Device, Bypass, Special Class, Gate Globe and Check Valve with Jacket, gate valve and check valvewith Pressure Seal Bonnet

Thanks for your selection of RSF’s API 600 Stainless Steel Gate Valve or super duplex stainless steel gate valve and check valve! If you have any inquiries of our oil and gas industry valves about Gate valve and globe check valve, please don’t hesitate to call us or email us!
