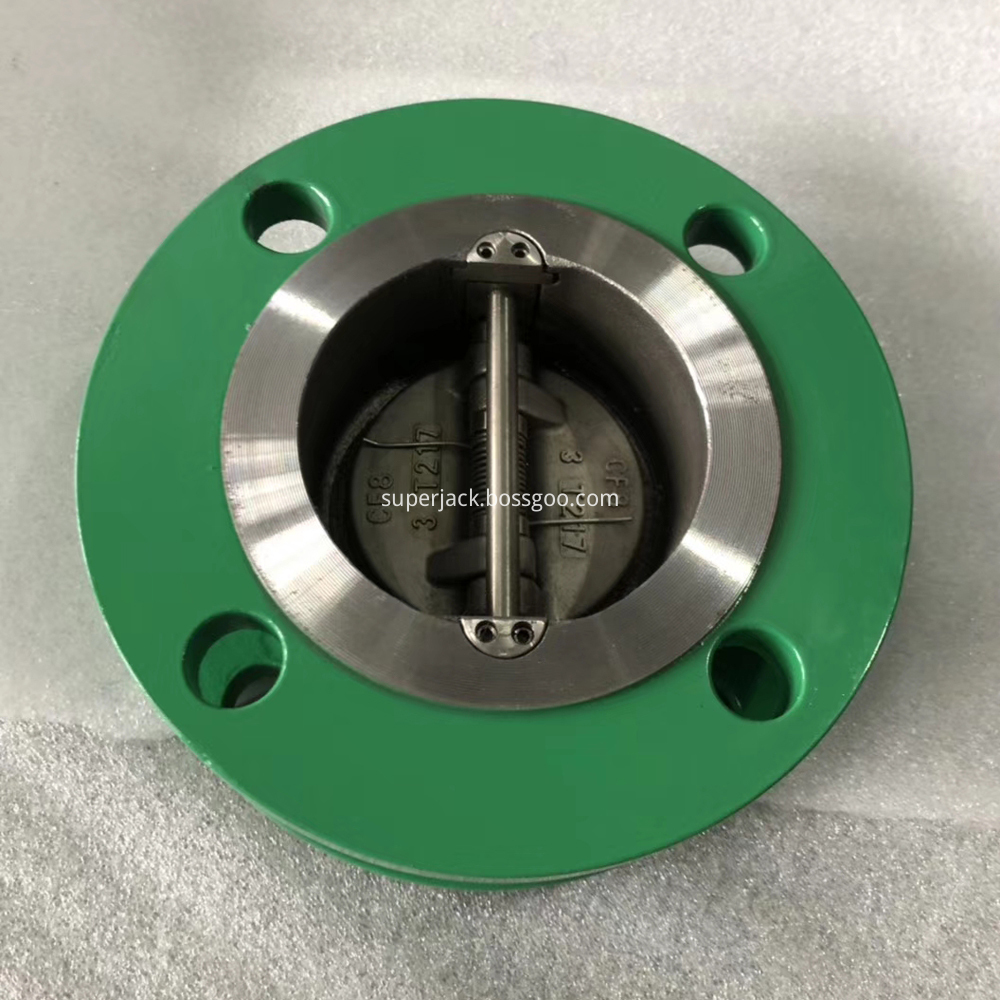

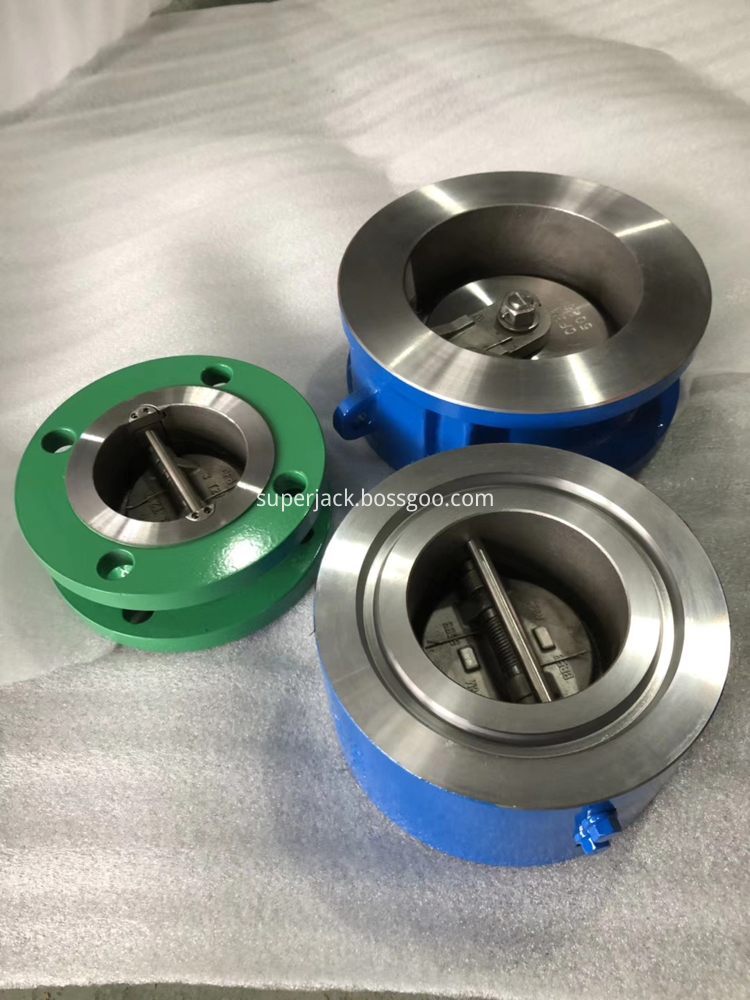

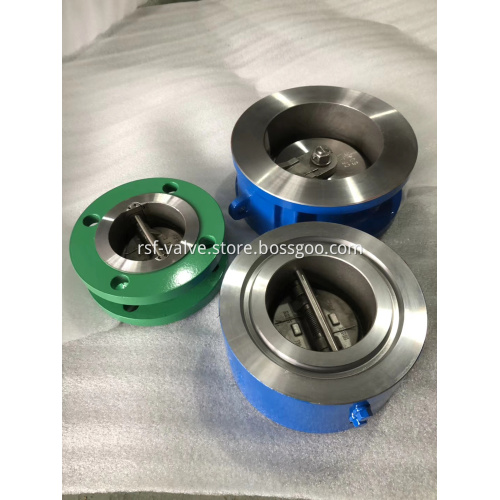

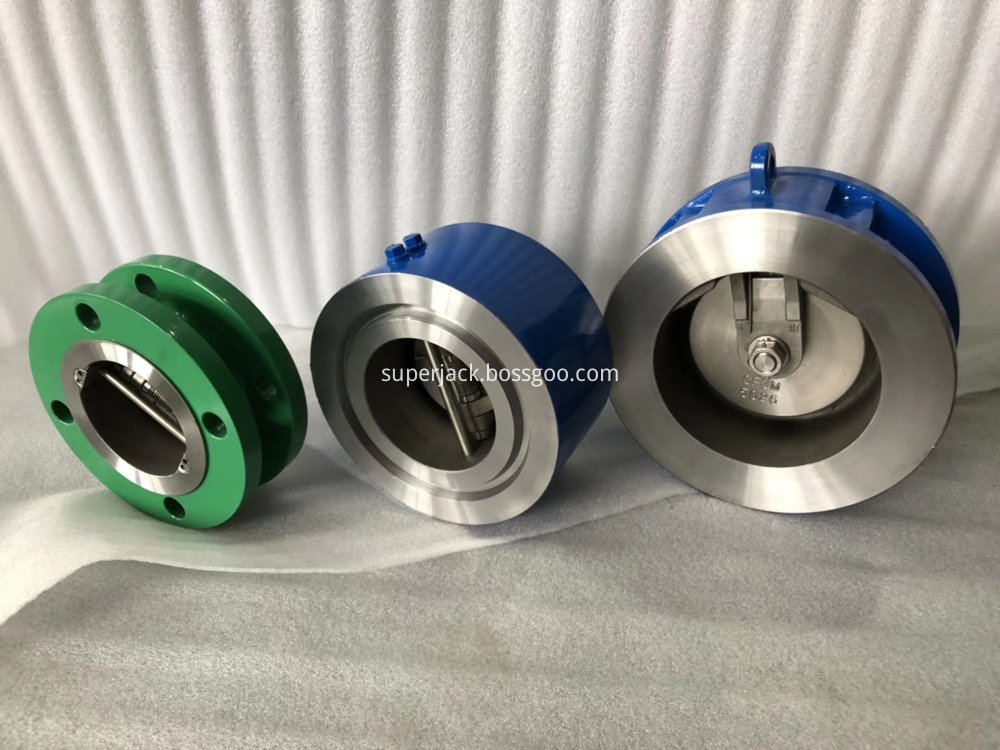

API 594 Dual Plate Check Valve

We are a leading manufactuer of oil and gas industry valves, we have more than 15years experience in producing cast steel API 594 Dual Plate Check Valve ( wafer check valve, lug, flange and BW ends), API 600 gate valve, BS1873 globe valve, non return valve of BS1868 swing check valve, ball valve, butterfly valve, et.

RSF’s API 594 Dual Plate Check Valve is one kind of important non return valve. It allows the fluid to flow only in the desired direction. The design is such that any flow or pressure in the opposite direction is mechanically restricted from occurring.

RSF's non return valve of API 594 Dual Plate Check Valve is used to prevent backflow of fluid, which could damage equipment or upset the process. The dual plate wafer check valve (lug, flange, BW) is especially useful in protecting a pump in liquid applications or a compressor in gas applications from backflow when the pump or compressor is shut down. Swing check valve is also applied in process systems that have varying pressures, which must be kept separate.

Standard:

Basic Design: API 594, API 6D, ASME B16.47

Face to Face: ASME B16.10, API 6D, EN558, ISO5752

Flange Ends: ASME B16.5, ASME B16.47, EN1092

BW Ends: ASME B16.25

Pressure Test: API 598, EN12266-1

Design Feature:

Dual Plate Check, Springs Loaded

Wafer, Lug, Flange Ends or BW Ends

Internal Shaft or External Hinge Pin

Size Range: 2" to 36" (DN50 to DN900)

Pressure Class: Class 150 to Class 2500 (PN16 to PN420)

Material:

Body: WCB, LCB, LCC, WC1, WC6, C5, CF8, CF8M, CF3, CF3M, CF8C, 4A, 5A

Hinge Pin: F6a, F304, F316, F304L, F316L, F321, F51

Trim: HF HFS, API 600 2009 Table 8

Painting: Epoxy, RAL9006

Optional:

Special Class according to ASME B16.34

NACE MR 01-75

Thanks for your selection of RSF’s API 594 Dual Plate Check Valve! If you have any inquiries of our series products for oil and gas industry valves such as API 600 gate valve, API 6D trunnion mounted ball valve, non return valve of BS1868 swing check valve, BS1873 globe valve, please don’t hesitate to contact with us!
