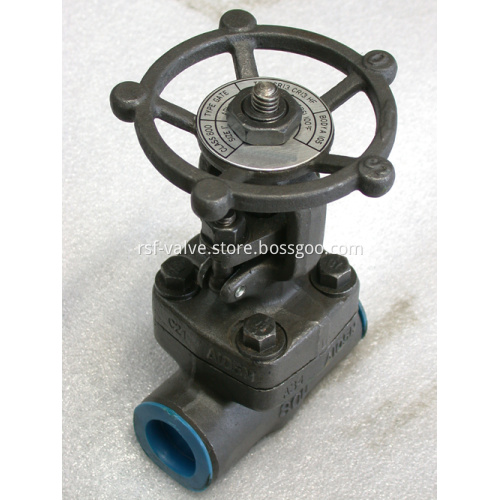

API 602 Forged Steel Gate Valve

We are a leading manufacturer of oil and gas industry valves, we have more than 15years experience in producing API 602 Forged Steel Gate Valve, gate globe and check valves.

For 2" and smaller Gate Globe and Check valves, forged steel valves are introduced. Compared with castings, forged valve bodies offer the advantages of more uniform structure, greater density, higher strength integrity, enhanced dimensional characteristics and closer dimensional tolerances.

The design of forged steel gate globe check valve & Strainer are also various: Full port, conventional port / reduced port; bolt bonnet, welded bonnet and pressure seal bonnet; socket weld (SW), threaded, butt welded (BW) and flanged end. Special designs include bellows seal gate valve, cryogenic gate globe and check valves to -196C, extended body gate globe and check valves, per customers' requirements.

Standard:
Basic Design: API 602, ASME B16.34
Face to Face: ASME B16.10, EN 558, Manufacturer’s standard
Connecting End: ASME B1.20.1, ASME B16.11, ASME B16.25, ASME B16.5, EN 1092
Pressure Test: API598, EN 12266

Design Feature:
Outside Screw & Yoke, Rising stem
Solid wedge, Plug Disc, Piston Globe Check check, Swing Check
Full port or Regular port
Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet
Socket Weld (SW), Butt Weld (BW), NPT, BSP Threaded End

Sizes: 1/2" - 2" (DN12 - DN50)
Pressure Class: Class 150 - Class 2500 or PN 16 - PN 420

Material:

Body: A105, LF2, F11, F22, F5, F304, F304L, F316, F316L, etc.
Trim: Trim 1, trim 2, trim 8, trim 5, etc. according to table 8 API 600

Operation:

Handwheel

Optional:

Stem Extension

Angle Globe Valve

NACE MR 01-75

Packing: Graphite + Inconel Wire

100mm welded nipple

Thanks for your selection of RSF’s API 602 forged steel Gate Globe and Check valves! If you have any inquiries of our series products for oil and gas industry valves such as gate globe check valve and strainer, non return globe check valve,  please don’t hesitate to call us or email us!
