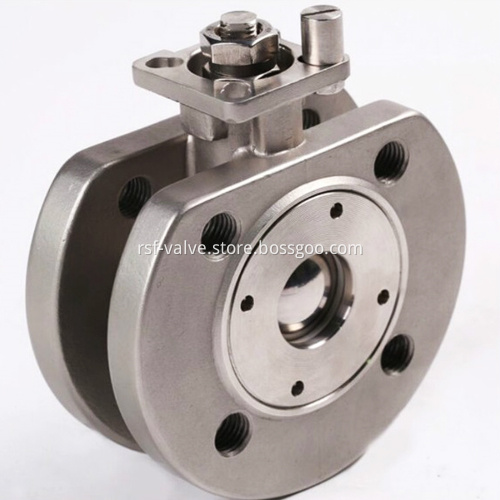

Wafer Type Floating Ball Valve

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF

Min. Order:: 10 Piece/Pieces

Min. Order:: 10 Piece/Pieces

Delivery Time:: 45 Days

Transportation:: Ocean, Air

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100,000PCS/YEAR
Supply Ability:	100,000PCS/YEAR
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF
Certificate:	ISO CE API
HS Code:	8481804090
Transportation:	Ocean,Air
Port:	Shanghai,Ningbo

Product Description

RSF VALVE is a leading manufacturer of gate valve, globe valve, check valve, butterfly valve, foating ball valve, trunnion mounted ball valve, plug valve, etc.

The Monoblock ball valve which we produce is also called Mono Ball Valve, or Italian Ball valve, Thin Ball Valve. It is wafer type. The Monoblock Ball Valve design is used for direct shut off of flow like any Ball Valve. The difference is the compact design and light weight. Wafer ball valve is the ball valve which has such features as compact structure, smaller volume, lighter weight, good sealing, flexible on-off, convenient installation,and etc. Wafer ball valve is mainly appliable to oil, chemical industry, metallurgy, pharmacy, food, and etc. Technical Specifications.

The Valve can be used in conjuction with other valves in series to allow for a safer shut off creating a double block for safety. This can also be used with a Double Block and Bleed valve where safety shut off is of great concern but still allows for a small profile.

Features and Benefits
1. Small, Thin design and light weight
2. Design allows you to combine with other valves in series for safe shut off
3. Reliable sealing performance and small torque;
4. Full bore and reduced bore;
5. Low emission packing;
6. Optional locking device
7. Optional ISO 5211 top flange.

8. Fire safe, anti-static and anti-blowout stem design

Material:

Body: Carbon Steel, Stainless Steel, Duplex Stainless Steel, WCB, LCB, LCC, CF8, CF8M, 4A, 5A, A105N, LF2, F304, F316, F51

Ball: A105N+ENP, LF2+ENP, F304, F316, F51

Shaft: A105N+ENP, LF2+ENP, F304, F316, 17-4PH

Seat: PTFE, RPTFE, NYLON, PEEK

Product Availability

This valve is available in 316 SS, Carbon Steel, Hastelloy C, Monel and other materials upon request.(NACE material is also available)

Optional:

Stem Extension

Lockable Device

Low Emission Packing

Mono Ball Valve with Steam Jacket

Warmly welcome to choose our oil and gas industry valves! if you have any inquiries of our monoblock ball valve or other kind of oil and gas industry valves such as ball float valve for water tank, please don't hesitate to contact with us!

Compact Floating Ball Valve
