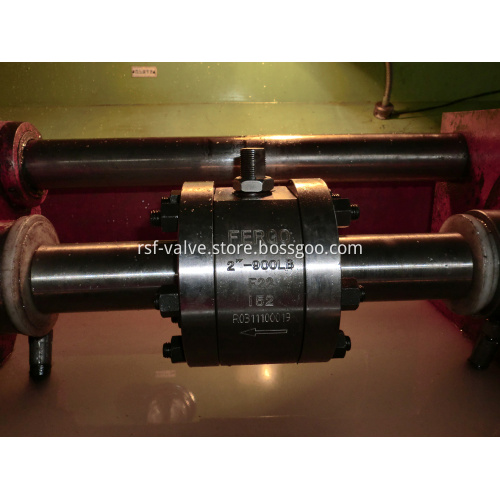

3pcs Forged Body Metal Seat Ball Valve

We are a leading manufactuer of oil and gas industry valves, we have more than 15years experience in producing 3pcs Forged Body Metal Seat Ball Valve (metal seat floating ball valve), and trunnion mounted metal to metal seat ball valve.

The metal to metal seat floating ball valve and trunnion mounted metal to metal seat ball valve are kind of important oil and gas industry valves when the working temperature is out of limitation of soft seat material or when it’s requested by abrasive service like black water.

The floating ball of forged steel floating ball valve is not fixed to the stem and is allowed some freedom of floating ball movement through the key slot. With the floating ball valve, the upstream fluid pressure assists the seal by pushing the ball back against the rear or downstream seat.

The API 6D trunnion mounted metal to metal seat ball valve has two floating seats with springs loaded, in which the ball is fixed at two pivot points, and the process pressure pushes the upstream seat against the ball's sealing surface. This trunnion mounted ball metal seat design applies continuous pressure against a trunnion mounted ball after the ball is installed. The metal to metal seat trunnion mounted ball valve is one kind of important oil and gas industry valves widely used in oil and gas industry when the working temperature is higher out of limitation of soft seat material or when it’s requested by abrasive service like black water. When the size bigger than 10” or pressure class higher than Class600, the trunnion type ball valve will be applied to replace floating ball valve. Trunnion valve can be applied to higher pressure class and bigger size.

Standard:

Basic Design: API 6D, ASME B16.47, BS5351

Face to Face: ASME B16.10, API6D, DIN3202, EN558

Flange Ends: ASME B16.5, ASME B16.47, EN1092

BW Ends: ASME B16.25

Pressure Test: API 6D, API 598, EN12266

Fire Safety: API 607, API 6Fa

Design Feature:

Hard Facing Seat

3pcs Forged Steel Body, Side Entry

2pcs Forged Steel Body, Side Entry

2pcs Cast Steel Body, Side Entry

Floating Ball or Trunnion Mounted Ball, Metal to Metal Seat

Blow-out Proof Stem

Anti-Static Device

Fire Safety Design

Size Range: 1/2" to 6" (DN15 to DN150)

Pressure Class: Class 150 to Class 4500

Material:

Body: WCB, CF8, CF8M, A105N, F11, F22, F304, F316, F51

Metal to Metal Seal: Base material + hard facing of TCC, STL Overlay, Nitriding

Operation:

Lever, Gear, Pneumatic Actuator

Optional:

100mm Welded Nipple, floating ball valve with Jacket, ball valve with Stem Extension

Thanks for your selection of RSF’s 3pcs Forged Body Metal Seat Ball Valve or metal to metal seat trunnion mounted ball valve! If you have any inquiries of our oil and gas industry valves such as floating ball valve, metal to metal seat floating ball valve, trunnion mounted ball valve, metal to metal seat trunnion ball valve, please don’t hesitate to call us or email us!
