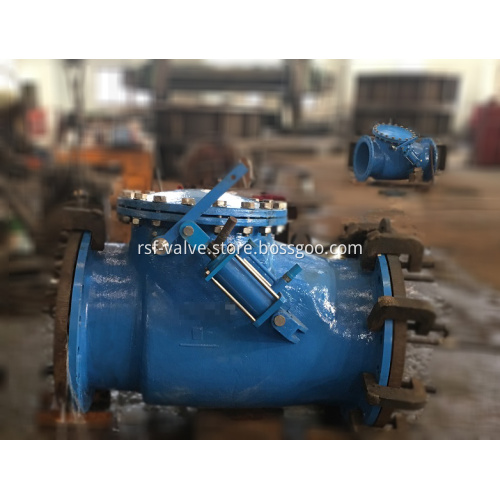

Swing check valve with Hydraulic Cylinder

RSF VALVE is a leading professional water valves manufacturer. Our products line includes gate valve, non return check valve, globe valve, strainer, butterfly valve, etc.

RSF VALVE's BS5153 Ductile Iron Metal Seat Swing Check Valve is one kind of Non Return Valve of Water Works Valves. It allows the fluid to flow only in the desired direction. The design of check valve is such that any flow or pressure in the opposite direction is mechanically restricted from occurring.

The BS5153 Ductile Iron Metal Seat Swing Check is used to prevent backflow of fluid, which could damage equipment or upset the process. The BS5153 gunmetal seat swing check valve is especially useful in protecting a pump in liquid applications or a compressor in gas applications from backflow when the pump or compressor is shut down. The nonreturn Swing check valve with lever and weight is also applied in process systems that have varying pressures, which must be kept separate.

The RSF BS5153 ductile iron metal seat swing check valves are installed on pipeline of pump outlet for prevent the media reflow and the pressure rise overlarge (water hammer) which caused by reflow closing. Our check valve with hydraulic damper is one kind of water works valves which is widely used in water pipe system.

As well as the BS5153 Ductile Iron Metal Seat Swing Check Valve, our non return valve series products includes Wafer Check Valve, Double Check Valve, Ball Check Valve, tiltling check valve, nozzle check valve, etc.

Standard:

Basic Design: BS5153

Face to Face: BS5153, DIN3202, ISO5752

Flange Ends: EN1092-2

Pressure Test: EN12266-1 Rating B

Design Feature:

Swing Check, Single Door, Double Doors, Multiple Doors

Double Flange Ends

Bolted Cap, Lifting Eye Bolt

Metal to Metal Seat, Brass Seat, Bronze Seat, Gunmetal LG2 Seat

non slam, with lever and counter weight, with hydraulic cylinder

Size Range: 2" to 64" (DN50 to DN1600)

Pressure Class: PN6 (0.6Mpa), PN10 (1Mpa), PN16 (1.6Mpa), PN25, Class 125, Class 150

Material:

Body: Ductile Iron GGG50, GGG40 EN-GJS 500-7, WCB, ASTM A536

Hinge Pin: SS410, F304, F316, F304L, F316L

Seat: Bronze, Brass, Gunmetal LG2

Coating: Fusion Bonded Epoxy, RAL5005, RAL5015, Min. Thickness 300Micron

Optional:

With Lever and Weight, WRAS Approved Resicoat R4

Single Door Check Valve, Multiple Door Check Valve, ball check valve

With Hydraulic Damper, Dual Plate Check Valve

Resilient Seat Check Valve

Thanks for your selection of RSF VALVE’s BS5153 ductile iron Metal Seat Swing Check Valve with lever and weight! If you have any inquiries of our water works valves such as swing check valve with hydraulic damper or butterfly tilting disc check valve with cylinder damper, please don’t hesitate to call us or email us!
