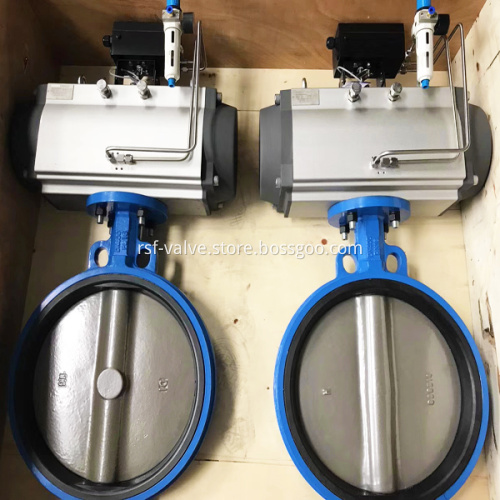

Pneumatic Actuated Butterfly Valve

RSF VALVE is a leading manufacturer of water works industry valves in China. We have more than 15years experience in producing concentric lug type butterfly valve, wafer type butterfly valve, double flange rubber lined butterfly valve, and double eccentric flanged butterfly valves.

The butterfly valve is one kind of important water works valves like gate valve and check valve, which is widely used in water transmission system.

The main function of our Pneumatic Actuated Concentric Wafer Type Butterfly Valve is to control fluid flow rate in pipeline: turn handle or other actuator, the disc will rotate; lock the disc at the specified angle by locking device; the fluid flow rate depends on the disc angle; when the disc is turned 90℃ to the valve bore center line, the pipeline is cut off. Considering different connecting ends, the water work butterfly valve is classified in wafer type butterfly valve, lug butterfly valve, and flange butterfly valve, etc. The ductile iron butterfly valves are widely used in industry of potable water, sewage, and sea water.

Standard:

Basic Design: EN593, API609, AWWA C504

Face to Face: ISO5752, EN558, API609

Connecting Ends: EN1092-2, ASME B16.5, ASME B16.47 A

Test: EN12266-1 Rating A, API 598

Design Feature:

Rubber Vulcanization Soft Seat

Wafer-Type End

Concentric Central Line

Bi-Directional

Stem with pins or without pins

Size Range: DN40 to DN1000 or 1 1/2” to 40”

Pressure Class: PN10, PN16, PN25, Class125, Class150

Material:

Body: Ductile Iron GGG50, GGG40

Disc: Ductile Iron, Stainless Steel CF8 CF8M, Duplex Stainless Steel, Bronze

Shaft: SS416, SS431, F304, F316, F51

Seat: EPDM, NBR, Nature Rubber

Bushing: PTFE or Bronze

Operation:

Lever, Gear, Electric Actuator, Pneumatic Actuator

Optional:

Stem Extension, WRAS Approved FBE Coating & Rubber

ROTORK or AUMA Gear Box

Warmly welcome to choose our water works valves! If you have any inquiries of Concentric Wafer Type Butterfly Valve or concentric Lug butterfly valve, please don’t hesitate to call us or email us!
