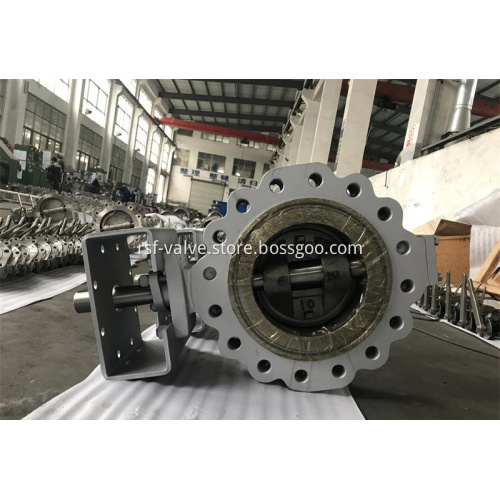

Cast Steel Triple Offset Lug Type Butterfly Valve

The main function of our Cast Steel Triple Offset Lug Type Butterfly Valve is to control fluid flow rate in pipeline: turn gear box or other actuator, the disc will rotate; lock the disc at the specified angle by locking device; the fluid flow rate depends on the disc angle; when the disc is turned 90℃ to the valve bore center line, the pipeline is cut off.

The Cast Steel Triple Offset Lug Type Butterfly Valve are differentiated from their on-off block cousins by the name high-performance butterfly valves. In simple terms, the high-performance butterfly control valve is a quarter-turn rotary-motion valve that uses a rotating round disk as a regulating element.

When fully open the cast steel triple offset butterfly valve, the disk actually extends into the pipe itself, which makes butterfly valves distinct from other valve designs. Butterfly valve bodies have very narrow face to face dimensions compared to other types of valves, allowing the body to be installed between two pipe flanges without any special end connections. This type of arrangement is called a through bolt connection and is only permissible with certain bolt lengths.

The triple Eccentric butterfly valves are valves designed specifically for high-performance throttling services, using a disk that is offset from the center of the valve body.

For throttling services, the triple eccentric butterfly valves are designed with a disc that is offset from the center of the valve body. When butterfly valve is automated, triple eccentric lug butterfly valve is preferred since the disc does not make contacting with the seat until closing, which prevents premature wear of the seat with the continual positioning associated with automated throttling.

Standard:

Basic Design: EN593, API609, MSS SP-68

Face to Face: ISO5752, EN558, API 609

Connecting Ends: EN1092-2, ASME B16.5, ASME B16.47 A

Test: EN12266-1, API 598

Design Feature:

Double Flange Ends, BW, LUG, Wafer Connecting

Eccentric Disc to Eliminating Friction between Disc and Seat

Unidirectional

Soft Seat or Metal to Metal Seat

Size Range: DN100 to DN1200 or 4” to 48"

Pressure Class: PN10, PN16, PN25, PN40, PN60, PN100, ANSI Class 150 to Class 600

Material:

Body: WCB, LCB, LCC, WC5, WC6, WC9, CF8, CF8M, CF3, CF3M, 4A, 5A

Disc: WCB, LCB, LCC, WC5, WC6, WC9, CF8, CF8M, CF3, CF3M, 4A, 5A

Shaft: SS416, SS431, F304, F316, F51, 17-4PH

Seat: PTFE, SS316 +Graphite, Completely Metal to Metal

Operation:

Gear, Electric Actuator, Pneumatic Actuator

Optional:

Stem Extension, Cryogenic Service, AUMA ROTORK Actuator, Carboline Painting, NACE MR 01-75

Thanks for your selection of RSF’s Cast Steel Triple Offset Lug Type Butterfly Valve! If you have any inquiries of our oil and gas industry valves, please don’t hesitate to call us or email us!
