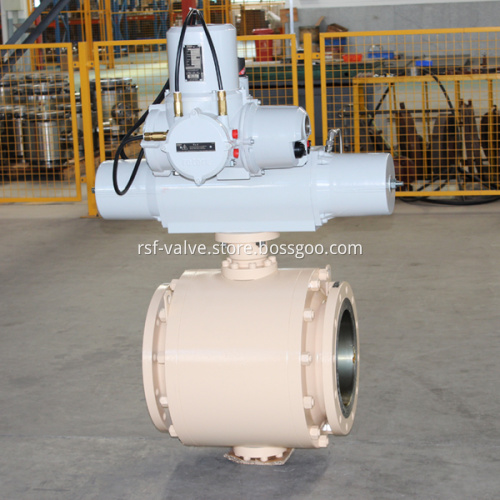

Motorized Trunnion Mounted Ball Valve

RSF VALVE is a leading manufacturer of oil and gas industry valves, we have more than 15years experience in producing API600 gate valve, API 6D gate valve, BS1873 globe valve, BS1868 swing check valve, API 6D ball valve, etc.

The API 6D trunnion mounted ball valve has two floating seats with springs loaded, in which the ball is fixed at two pivot points, and the process pressure pushes the upstream seat against the ball's sealing surface. This design applies continuous pressure against a trunnion mounted ball after the ball is installed. The trunnion mounted ball valves are widely used in oil and gas industry.

The family of API 6D trunnion mounted ball valve are classified into 3pcs forged body trunnion valve, 2pcs cast steel body trunnion ball valve, and one pc forged body top entry trunnion ball valve. The one pc forged body top entry trunnion ball can avoid the leaking risk from the connection between body and closure. The other advantage of top entry ball valve design is it makes the emergency on-line maintenance to be easier and quicker, because the valve ball needn’t to be removed from pipe line. The 3pcs forged steel trunnion type of ball valve is most widely used trunnion ball valve of oil and gas industry valves because it's reliability and economity.

Standard:

Basic Design: API 6D, ASME B16.47

Face to Face: ASME B16.10, API6D

Flange Ends: ASME B16.5, ASME B16.47

BW Ends: ASME B16.25

Pressure Test: API 6D, API 598

Fire Safety: API 607, API 6Fa

Design Feature:

3pcs Forged Steel Body, Side Entry

3pcs Cast Steel Body, Side Entry

2pcs Cast Steel Body, Side Entry

Trunnion Mounted Ball

Blow-out Proof Stem

Anti-Static Device

Fire Safety Design

Emergency Sealant Injector

DBB, DPE, SPE

Size Range: 2" to 48"

Pressure Class: Class 150 to Class 2500

Material:

Body: WCB, LCB, LCC, CF8, CF8M, 4A, A105N, LF2, F304, F316, F51

Ball: A105N+ENP, LF2+ENP, F304, F316, F51

Shaft: A105N+ENP, LF2+ENP, F304, F316, 17-4PH

Seat Insert: PTFE, RPTFE, NYLON, PEEK

Operation:

Lever, Gear, Pneumatic Actuator, Electric Actuator

Optional:

Stem Extension, 3mm Thickness SS316 Overlay Seat Pocket

Lockable Device

Inorganic Zinc Painting, Carboline

Thanks for your selection of RSF’s API 6D Trunnion Mounted Ball Valve! If you have any inquiries of oil and gas industry valves, please don’t hesitate to call us or email us!
