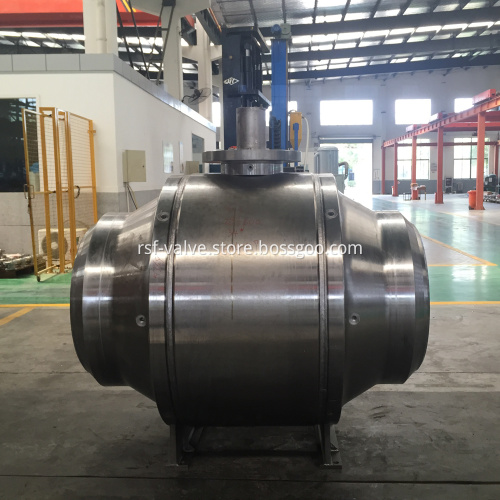

API 6D Welded Body Trunnion Mounted Ball Valve

RSF is a professional manufacturer of API 6D Welded Body Trunnion Mounted Ball Valve. We have automatic welding machine, WPS and PQR are available. We have full range products of oil and gas industry valves.

API 6D Welded Body Trunnion Mounted Ball Valve is widely used in long transmission pipe of oil and gas because the welded body construction prevent the trunnion ball valve from leaking risk through valve body.

The family of API 6D Trunnion Mounted Ball Valve is classified into 3pcs forged body trunnion valve, 2pcs or 3pcs cast steel body trunnion ball valve, and one pc forged body top entry trunnion ball valve. The one pc forged body top entry trunnion ball can avoid the leaking risk from the connection between body and closure. The other advantage of top entry ball valve design is it makes the emergency on-line maintenance to be easier and quicker, because the valve ball needn’t to be removed from pipe line. The 3pcs forged steel trunnion type of ball valves are most widely used trunnion ball valve of oil and gas industry valves because it's reliability and economy.

The trunnion mounted ball valve is one kind of widely used oil and gas industry valves. The API 6D Welded Body Trunnion Mounted Ball Valve has two floating seats assembling with springs loaded, in which the ball is fixed at two pivot points, and the process pressure pushes the upstream seat against the trunnion ball's sealing surface. This design applies continuous pressure against a trunnion mounted ball after the ball is installed.

Standard:

Basic Design: API 6D, ASME B16.47

Face to Face: ASME B16.10, API6D

Flange Ends: ASME B16.5, ASME B16.47

BW Ends: ASME B16.25

Pressure Test: API 6D, API 598

Fire Safety: API 607, API 6Fa

Design Feature:

Welded Forged Steel Body

Trunnion Mounted Ball

Anti-Blow Out Stem, Anti-Static Device, Fire Safety Design

Emergency Sealant Injector, Stem Grease Injector

DBB, DPE, SPE

Size Range: 2" to 48"

Pressure Class: Class 150 to Class 2500

Material:

Body: A105N, LF2, F304, F316, F51

Ball: A105N+ENP, LF2+ENP, F304, F316, F51

Shaft: A105N+ENP, LF2+ENP, F304, F316, 17-4PH

Seat Insert: PTFE, RPTFE, NYLON, PEEK

Operation:

Lever, Gear, Pneumatic Actuator

Optional:

Stem Extension for Buried Service

3mm Thickness SS316 Overlay Seat Pocket

NACE MR 01-75, AED O-Ring

Inorganic Zinc Painting, Carboline

Thanks for your selection of RSF’s API 6D Welded Body Trunnion Mounted Ball Valve! If you have any inquiries of our oil and gas industry valves, please don’t hesitate to call us or email us!
