CaCO3 Filler   pelletizer CaCO3 filler compound extruder

CaCO3 Filler Master Batch is widely applied in plastic industry such as injection, film blowing, bottle making to reduce production costs. Also it improves physical and chemical properties of polymers, reduces the production cost with increasing quality. Also, it helps to improve the hardness and the surface features such as physical or chemical durability of plasticproducts. .We can provide the No.1 technology in China to make the filler masterbatch  , welcome to inquire us at +86 15370756712 (also whatsapp)

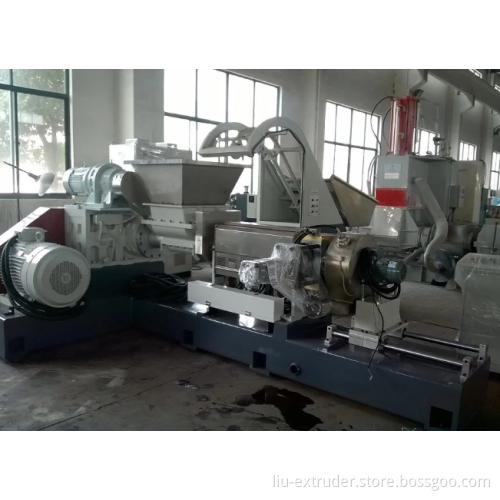

 https://youtu.be/9yWGjRUnw1E This is the best performance for the high filler extrusion system or for color masterbatch making or for LSHF(low smoke halegon free) compound for wire and cable material .110L mixer—automatic elevator +  conical twin screw forced feeder +(2 stages extruder) GLS75 twin screw extruder-----GLD 180single screw extruder + hydraulic plate-type automatic net changing + air-cooling hot-trimmer granulator +  3 stages  cyclone separator +air-cooling vibrating screen + finished product bin .This kind of filler is quite suitable for the film blowing,plastic bag making and LSHF(low smoke halegon free),CPE  cable material making. welcome to inquire us at +86 15370756712(also whatsapp)

High quality pp pe plastic granulating machine production line

Application:

Applicable materials for plastic pelletizer machine: PP,PE, LDPE, LLDPE, HDPE, BOPP, etc.

Material shape: Woven bags, pp pe film,printed LDPE film (rolls, loose, bundled), agriculture film, foamed plastics and raffia, etc.

Note: depending on material property, various downstream equipments are available.

Advantages:

  1.  Suitalbe for plastic film PP ,PE ,HDPE,LDPE,LLDPE and so on.

  2.  Equipped with the vertical and horizontal force-feeding device to ensure high output.

  3.  Vent design on the barrel to evaporate the volatiles form the recyle maerial.

  4.  Hydraulic screen change unit and pressure gauge for easy operation and safety.

  5.  Water chamber with die face cutter simplifes the process.

  6.  The vertical centrifuge separates and dry the pellets faster.

  7.  High-efficient force-feeder ensures high capacity feeding, low energy consumption

  8.  Plastic pelletizer style: water-ring cutting with extrusion mould, even cutting ensures good shape.

twin-screw extruder  Products

Configuration

  1.Twin screw Volumetric feeder

 2.Reduction gearbox

 3.Lubrication oil cooling system

 4.Motor of host machine

 5.Screw and charging barrel

  6.Heating system

 7.Vacuum degasification device

 8.Soft water cyclic system

 9.Screen changer system

 10.Auxiliary machine

 11.Electrical control cabinet

Screw & Barrel

   Screw Kneading block built on modular principle allows various L/D ratio of screw easily be changed to suit different material. Screw component made of high speed & wear-resisting steel.

The screw elements are designed accuratly and made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heater treatment.

The SHJ series twin-screw extruders have screw threads made of high grade steel with a five-axis machining tool to reduce clearance and wear.

This twin screw extruder is equipped with PLC controllers and high-level touch screen panels for manual or automatic operations. The extruder’s operating parameters are input and displayed on the touch panel. Designed by CAD, the closely intermeshed screw elements have excellent self-wiping characteristics, and can be interchanged with each other easily. Besides, twin-screw compounding extruder is installed with the newly designed torque distribution system, high-precision grinding of hardened gear teeth, and imported high-quality key bearings.

Furthermore, the system is capable of remote control. This twin screw extruder can be extensively used in many fields, such as polymer blending, homogeneity, plasticization, filling modification and granulation, engineering polymer and glass fiber reinforcement, master batch, functional parent granule, special material, power coating material and cable material reactive extrusion, degassing and devolatilization, etc.

All SHJ series twin-screw compounding extruders meet or exceed CE and international safety standards. Gongle can also design an entire twin screw extruder production line to meet customers’ specifications

Advantages:

1. Gongle twin-screw compounding extruders possess space saving function, elegant and compact configuration.
2. This type of twin screw extruder adopts world-class inverter and comprehensive alarm system.
3. Its reducing torque distribution system can ensure quiet running.
4. Twin-screw compounding extruder is equipped with flexible and maintenance-free air-cooling system.
5. This kind of twin screw extruder is well designed and elaborately manufactured.
