Industrial Distribution Cable Connector Terminal Blocks

We have many types of Terminal Blocks, such as Feed-Through Terminal Blocks , Barrier Terminal Blocks , Din-Rail Terminal Blocks ,etc.

Insulation material is nylon 66 with good flexibility and flame retardant , copper alloy with wire frame structure provide moisture, salt fog and bad environment protection for a long time, special wire pressing structure have good self-locking and loose proof performance. the product designed in accordance with IEC60947.

1. Made from engineering antiflaming nylon PA66 with brass screw metal.

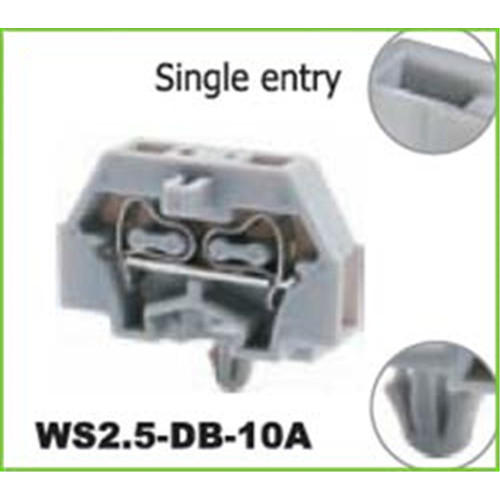

2. The Din-Rail Terminal Blocks are characterized by easy and tool-free wiring of conductors with ferrules or solid conductors.

3. The compact design and front connection enable wiring in a confined space.

4. In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection.

5. Low voltage drop and gas-tight contact point.

6. With universal foot which can be installed on Din Rail NS 35. The three different clip-on foot designs available for different types of Din Rails.

7. It can connect two conductors with ease, even large conductor cross sections are not a problem.

8. Electric potential distribution can use fixed bridges in the terminal center o.

In addition to Terminal Blocks, we also specialize in Heavy Duty Connectors, Installation Wire Harness,Plastic Waterproof and other products. For details, please contact customer service.
