Cylindrical Battery Module Pack Snake Tube For EV

Snake tube for EV

Description

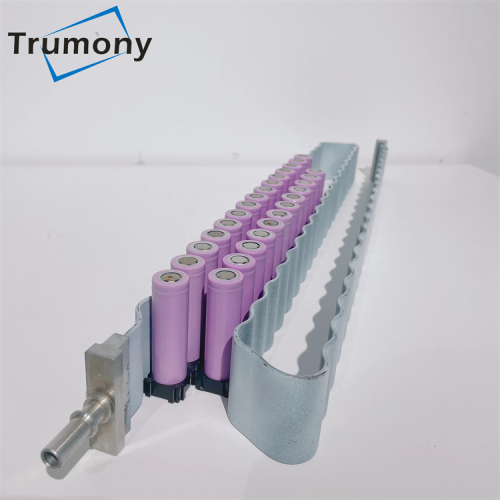

Trumony design and make various liquid cooling plate for EV, water cooling tube for EV, snake tube for EV ,cooling pipe and cooling plate for ESS. The snake tube for ev are made by aluminum extrusion process. Its internal with multi-port for coolant flow to realize the heat dissipation. At present. we have full cooling solution for 18650 /21700/3270/4680 batteries. The serpentine cooling tube design can be customized as your request .

Specification

1-Liquid-cooled cold plate : Prismatic lithium ion battery pack

2-Aluminum serpentine tube : Tesla 18650 EV battery pack cooling system

3-Aluminum microchannel plate : Pouch cell battery management system cooling solution

4-Aluminum roll bonded evaporator

FAQ :
1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .


2.What the alloy and temper of your water cooling plate ？
A:The aluminum alloy is 3000,6000 and temper is O-H112.

3.What the process technology to do the cold plate or coolant channles ?
A:Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.

4.Do you support customized prototype for battery pack module ?
A:Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
