Copper clad aluminum sheet for EV battery connect

Copper clad aluminum sheet for EV battery connect

USD3000

5-24 Metric Ton
USD2800

25-499 Metric Ton
USD2700

≥500 Metric Ton

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 5 Metric Ton

Min. Order:: 5 Metric Ton

Delivery Time:: 25 Days

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000 tons per month
Supply Ability:	1200000 tons per year
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO 9001
HS Code:	7606
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

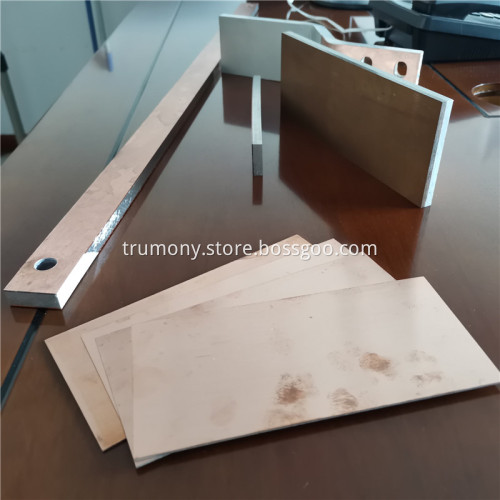

Product Name: Copper clad aluminum sheet for EV battery connect

Company Introduction:

Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, cole material and other aluminum products like aluminum sheet, aluminum plate, aluminum coil, aluminum foil, aluminum strip, multi metal composite material, aluminum pipe, aluminum tube, aluminum heat exchange etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, coating finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.

Trumony belief: Trust and Harmony

Specification of Copper aluminum composite panel for vehicle battery:

Specification	Battery material	Model	Physical property			Mechanical propert
		Model	Total thickness(mm)	Copper thickness(mm)	Density（g/m3)	Tensile Strength	Elongation rate（%)	Peel Strength(N/mm)
		T2-1060	3.8	1.3	4.82	same or over 180	same of over 10	same or over 12
	Decorative material	Model	Specification
		Model	Total thickness(mm)	Coating thickness	Width（mm)	Length(mm)
		T2-5052	0.5-3.0	10-12%	same or less 1000	Customized
Parameter	Decorative material	Model	Physical property			Mechanical propert
		Model	Density(g/m3)	Weight compare with copper	Tensile Strength(Mpa)	Elongation rate(%)	Peel Strength(N/mm)
		T2-5052	4.82	1:2.63	same or over 200	same or over 10	Break it up without layering, indehiscent

Our goods advantage:

The Copper clad aluminum plate can be signle side clad, double side clad, half clad etc.

Mainly for vehicle factory, battery pack company, design company etc for vehicle battery connect.

Our company advantage:

1. Since 2006, we have rich experience in this industry in China;
2. Good reputation in aluminum material industry;
3. We have ourselves development department for new material research;
4. Good experience and cooperation with big client in the world;
5. With Certificate ISO9001-2008;
6. High performance cost ratio;
7. Fast delivery time;
8. Good communication skills, and good after sells service, and understandings for customers;

Multi Metal Composite Material35

Multi Metal Composite Material23

Multi Metal Composite Material19

Multi Metal Composite Material53

FAQ
1, Q: Are you manufacturer of Copper aluminum composite plate for EV battery?
A: Yes, we are established in 2006. As a manufacturer welcome to visit our factory.

2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.

3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.

4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable pipe & tubes.
