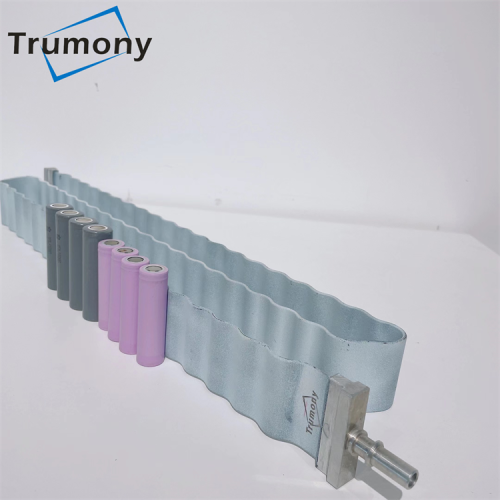

Battery Energy Storage System Snake Cooling Tube

Battery Energy Storage System Snake Cooling Tube

Description

Trumony have ability to supply aluminum tube, aluminum coil , aluminum sheet and heat exchanger parts for our clients.Liquid cooling tube for power storage is positive used for pure electric buses, urban delivery light trucks, minibus and minivans. It is manufactured by aluminum extrusion. The battery cooling tube for ESS design and size can be customized . Thickness of the snake tube for ESS is 2.4mm or 3mm. If you want to know about the water cooling tube for power storage details, pls contact us .

Specification

1-Liquid-cooled cold plate : Prismatic lithium ion battery pack

2-Aluminum serpentine tube : Tesla 18650 EV battery pack cooling system

3-Aluminum microchannel plate : Pouch cell battery management system cooling solution

4-Aluminum roll bonded evaporator

Using liquid cooling tube, ESS manufacturers gain benefits in multiple places:

1. Make ESS racks into more compacted size, so power density increased, as well as land utilization.

2. Having much increased heat dissipation performance , so system runs with more reliability.

3. Energy saving than using HVAC

4. Lower cost in installation

With very rich experience in making cooling pipe for battery packs.Below are the strength from us that you can rely on:

1. Aid in cooling components design feasibility

2. Proven solutions for both prismatic and cylindrical cells

3. Capability in doing DVP with client

4. Fast support in Prototype making

FAQ :
1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .


2.What the alloy and temper of your water cooling plate ？
A:The aluminum alloy is 3000,6000 and temper is O-H112.

3.What the process technology to do the cold plate or coolant channles ?
A:Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.

4.Do you support customized prototype for battery pack module ?
A:Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
