3003 Serpentine Extruded Liquid Cooling Plate

3003 Serpentine Extruded Liquid Cooling Plate

$8.00 - $20.00/Set/Sets

Min. Order:: 300 Set/Sets

Min. Order:: 300 Set/Sets

Transportation:: Ocean, Air, Express

Port:: Shanghai, Ningbo, Qingdao

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000tons/year
Supply Ability:	10000tons/year
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,DDU
Certificate:	ISO9001, ISO14000
HS Code:	7607
Transportation:	Ocean,Air,Express
Port:	Shanghai,Ningbo,Qingdao

Product Description

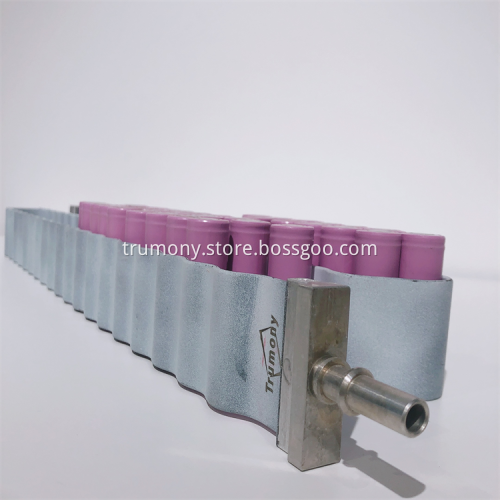

3003 Serpentine Extruded Liquid Cooling Plate

3003 Serpentine Extruded Liquid Cooling Plate are popular applied for new energy cars battery cooling system. As a cooling component , we can make as your drawing . Certainly, we also can give a total solution from design, prototype and mass production .

Trumony have more than 10 years export experience, we are good at supplying aluminum cooling plate, aluminum vapor chamber plate,aluminum liquid cooling tube for EV, aluminum liquid cooling plate for power storage and liquid cooling tube for power storage.

Specification of mirco channel aluminum heat exchanger tube:

Material: Alloy 3000 series;

Size:Customerized.

Thickness:Customerized.

Alloy code	Temper	Tensile Strength Rm(Mpa)	Yield Strength Rp0.2(Mpa)	Elongation
TR010,TR020,TR030,TR040,TR050, TR110,TR310, TR116,TR316,TR111,TR313,TR121, TR131,TR141, TR150,TR151,TR156 etc	O	95~135*	≥35*	≥15*
	H14	140~185	≥125	≥1.5
	H24	140~185	≥125	≥3
	H16	185~225	≥160	≥1
	H18	≥185	-	≥0.5
TR166 etc tube material	H24	185~235	≥150	≥8
TR116,TR316 etc tube material	H14	140~185	≥125	≥3
TR116,TR316 etc tube material	H24	140~185	≥125	≥8

Chemical Composition(%)

Core Alloy:3003

Element	Si	Fe	Cu	Mn	Mg	Cr	Zn	Bi	Zr	Ti	Al
Max	0.6	0.7	0.20	1.5	-	0.05	0.10	0.05	-	-	Rem
Min	-	-	0.05	1.0	-	-	-	-	-	-	-

Mechnical Properties

Properties	Rp0.2(MPa)	Rm(MPa)	A50(%)	Clad 1 ratio(%)	Clad 2 ratio(%)
Max	-	135	-	-	-
Min	35	95	10	-	-

Our advantage of aluminum battery cold pipe:

1. Since 2006, we have rich experience in this heat exchange area in China;
2. Good reputation in household foil areas;
3. We start our productions from aluminum ingot,so we can control the quality as well;
4. Design ability: have design team to give you technical support.
5. Price advantage.
6. Good experience and cooperation with big clients in the world;
7. With Certificate ISO9001-2008;
8. Sample order is acceptable
9. High performance cost ratio;
10.Fast delivery time and fast resolve problem attitude.

Company Profile

We, Trumony aluminium limited is committed to providing clean aluminium solution to the market. “Through the discovery and creation, to bring value to customers” is the company philosophy.”Trust in Harmony” is the company culture. Now, Through years of developing, now we are widely engaged in transportation, heat exchange,cable,packaging,construction,electronics,environmental protection and other files,apart from our current production, we are also actively developing new aluminium material and searching for customers solutions which is best suited for different industries to meet the precise needs of customers. Future we hope through our daily work, we could promote environmental protection, reduce social cost,promote employment and family harmony,thus our own value could also be realized.

Snake Tube03 Png Mircochannel Tube 1 Png
