Aluminium EV Round Battery Serpentine Cold Cooling Tube

Aluminium EV Round Battery Serpentine Cold Cooling Tube

$10.00 - $50.00/Set/Sets

Min. Order:: 300 Set/Sets

Min. Order:: 300 Set/Sets

Transportation:: Ocean, Air, Express

Port:: Shanghai, Ningbo, Qingdao

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000tons/year
Supply Ability:	10000tons/year
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,DDU
Certificate:	ISO9001, ISO14000
HS Code:	7607
Transportation:	Ocean,Air,Express
Port:	Shanghai,Ningbo,Qingdao

Product Description

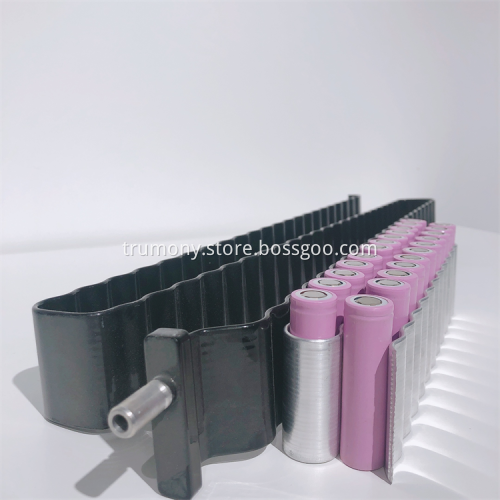

Aluminium EV Round Battery Serpentine Cold Cooling Tube

1. Product Introduction:

Aluminium EV Round Battery Serpentine Cold Cooling Tube is made by 3003 or 1060 alloy aluminium micro channel tube & connectors. It is widely used for cylindrical batteries such as 18650, 21700 and 46800. The surface can be bare or coating black or stick with thermal conductive film to reach more effective.

The liquid cooling components for EV also called liquid cooling tube for EV or liquid cooling plate for EV.

Except apply to the electric vehicle, the another important industry filed is for energy storage system , we named liquid cooling tube for power storage or liquid cooling plate for power storage.

2. Commonly used material chemical composition:

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤0.25	≤0.40	≤0.05	≤0.05	≤0.05	---	≤0.05	≤0.05	≤0.03
2	1100	≤0.95(Si+Fe)		0.05-0.20	≤0.05	---	---	≤0.10	---	---
3	3102	≤0.40	≤0.70	≤0.10	0.05-0.40	---	---	≤0.30	---	≤0.10
4	3003	≤0.15	≤0.15	≤0.01	0.90-1.10	≤0.03	≤0.03	≤0.05	≤0.05	≤0.05

Both 3003 and 3102 are the alloys with very good anti-corrosion property,so they are widely used for heat exchange.

3. Supply state and mechanical properties:

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
1050	O/F/H111/H112	≥65MPa	≥20MPa	≥25%
1100	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3102	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3003	O/F/H111/H112	≥75MPa	≥20MPa	≥25%

4. Application:

Different range of heat exchanger or collection, such as new energy automobile/vehicles(Cylindrical battery, prismatic battery, soft packing battery), solar panel, solar energy collector, photovoltaic power generation collector, collector, superconducting plate, soaking plate,temperature uniforming plate,below some application for your reference.

5. Products for your reference:

Cylindrical Battery Thermal Management
Square Battery Thermal Management
Electric Thermal Management
All Aluminum Liquid Cooling Tray
Soft Packing Battery Thermal Management
Motor Thermal Management
