Heat Transfer Device Aluminum Extruded Loop Heat Pipe

Heat Transfer Device Aluminum Extruded Loop Heat Pipe

$6.00 - $15.00/Piece/Pieces

Min. Order:: 2000 Piece/Pieces

Min. Order:: 2000 Piece/Pieces

Transportation:: Express, Ocean

Port:: Shanghai, Qingdao , Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000tons/year
Supply Ability:	10000tons/year
Payment Type:	T/T
Incoterm:	FOB,CFR,CIF,EXW,DDU,Express Delivery
Certificate:	ISO9001, ISO14000,
HS Code:	7607
Transportation:	Express,Ocean
Port:	Shanghai,Qingdao ,Ningbo

Product Description

Two Phase Heat Transfer Device Aluminum Extruded Loop Heat Pipe

Extruded Aluminum Heat Pipe Benefits and Advantages

Good Temperature Uniformity
High Thermal Conductivity
Variable Shape
Small Volume
Light Weight
Low Cost

Working Principles Of Aluminum Heat Pipes

Heat pipes move heat from the evaporator end (heat source) to the condenser end (heat sink) via the working fluid in the heat pipe.

The cycle first begins at the evaporator end with the heat turning the liquid inside the heat pipe into vapor, which then move towards the condenser end via a pressure differential.Once the hot vapor reaches the condenser end, the vapor condenses and becomes liquid, which then move back towards the evaporator end via gravity (thus evaporator end must be below the condenser end for aluminum heat pipes to function) .

Technical Parameters

Item	Micro Channel Bent Aluminum Vapor Chamber
Dimension	590200mm
Material	Aluminium
Surface Treatment	milling
Application	Condensers Evaporators Oil coolers Radiators Heater cores

Company

Founded in 2006 , have export over 53 countries of worldwide. We are widely engaged in transportation, heat exchange, cable, packaging, construction, electronics, environmental protection and other fields, Apart from our current production, we are also actively developing new aluminum materials and searching for customers solutions which is best suited for different industries to meet the precise needs of customers.

Our main products are aluminum alloy cladding material and other aluminum products like aluminum plate, aluminum sheet, aluminum coil, aluminum foil, aluminum strip, aluminum pipe, aluminum tube etc, for aluminum battery cooling pad for electronic vertical, automobile heat exchangers such as Aluminum liquid storage tank, extrusion cold drawing tube, radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.
We already supply products to many electronic factories. We also provide solution plans.

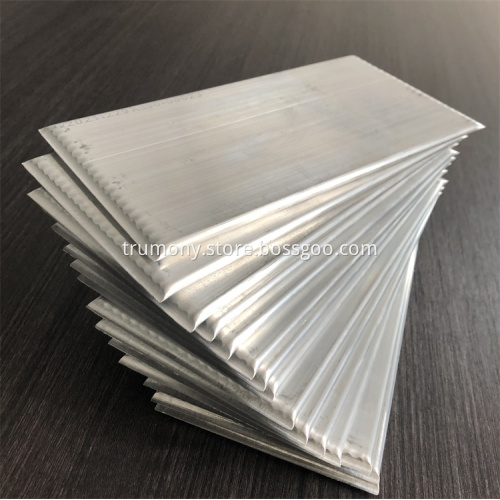

vapor chamber (4)
